PowerCube · Energy storage · Gen 2

Safer by Design. Smarter by Architecture.

Name: PowerCube
Brand: VaySunic

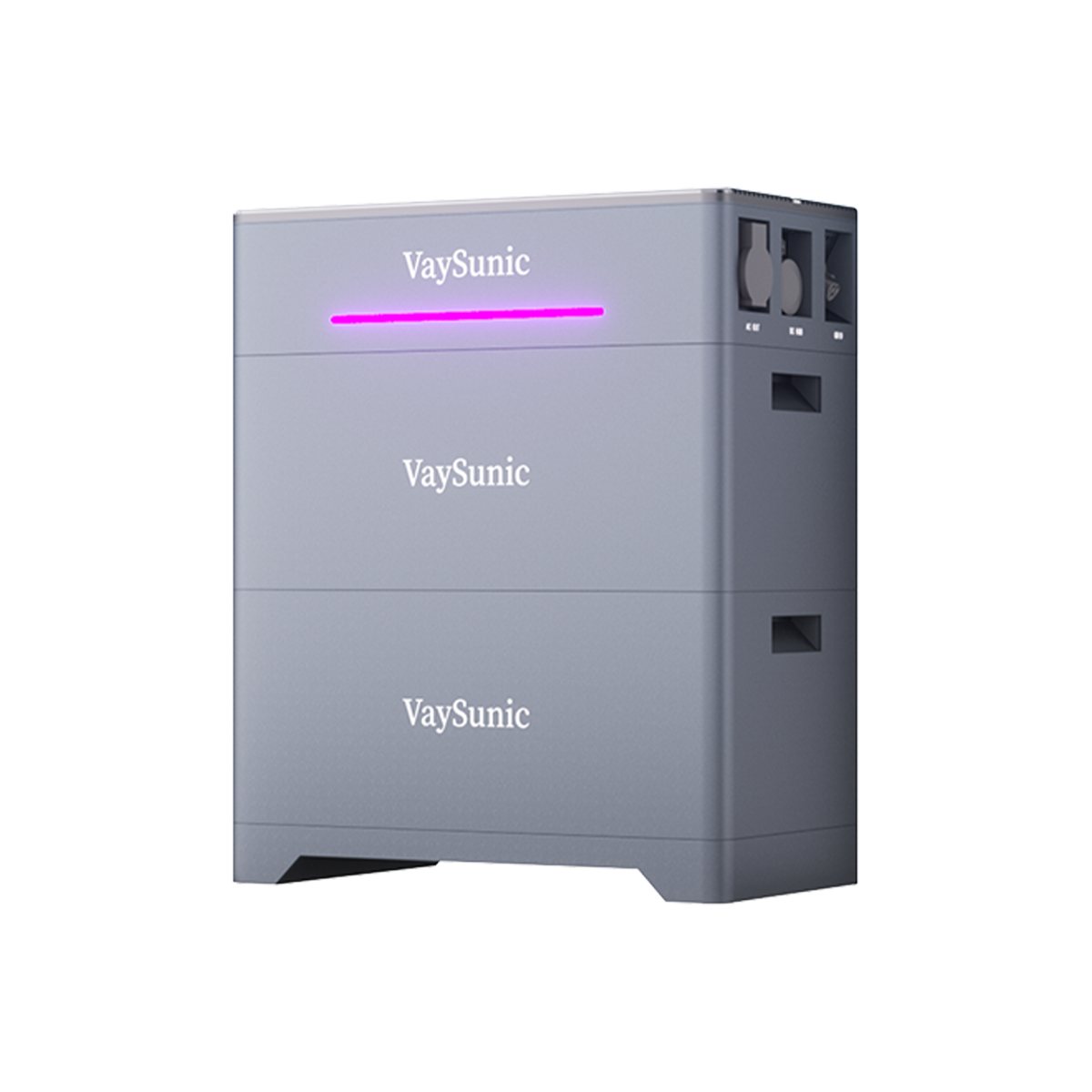

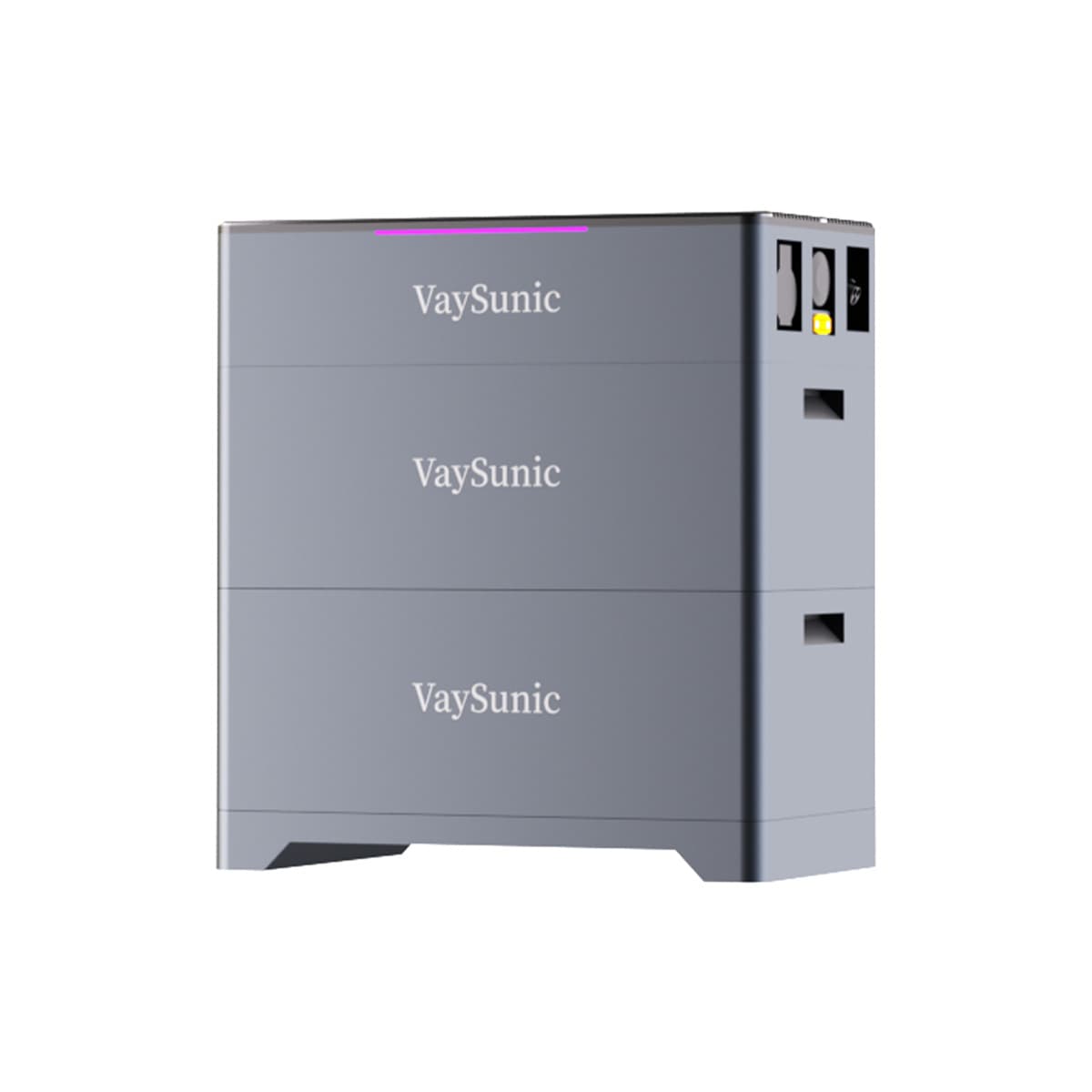

An all-in-one hybrid storage system: inverter, 4 MPPT solar inputs and 2.5 kWh in one unit. Stack up to six VB5000D packs for 32.5 kWh, with backup in 10 ms or less and up to 3,600 W on the backup port.

Independent Optimizer Technology ↓VaySunic Shield™ Technology ↓

Request a quote Download datasheet Explore in 3D Powered by VIP Cloud

PowerCube home battery storage: VA800D, VA1200D, VA2000D, VA2500D, VA3000D, VA3600D, + VB5000D

32.5kWh
Maximum capacity
2.5 kWh built in + up to six packs
12,000cycles
LFP cell cycle life
Laboratory test conditions**
≤ 10ms
Backup switchover
On the dedicated EPS port
3,600W
Continuous backup
4,500 W for 15 s***
5layers
Battery protection
In every module
−20–55°C
Self-heating battery
Cell temperature range
4MPPT
Solar input
Up to 3,000 W of PV
IP66*
Indoors or out
Die-cast aluminium enclosure

Independent Optimizer Technology

Every Module. Independently Managed.

Every module has its own Battery OptimizerThe weakest module doesn't set the limit

PowerCube

Parallel

Conventional design

Series

Flexible by design

Mix what you have.

Different capacities

2.5 kWh

5 kWh

Batteries

12.5 kWhTotal capacity

VA24 °C

72%

VB5000D24 °C

72%

VB5000D25 °C

72%

Different states of charge

85%

40%

65%

Batteries

59%System state of charge

VA24 °C

85%

VB5000D24 °C

40%

VB5000D25 °C

65%

Different batches

Existing

New

Batteries

12.5 kWhTotal capacity

VA24 °C

66%

VB5000D24 °C

66%

VB5000D25 °C

80%

How it grows

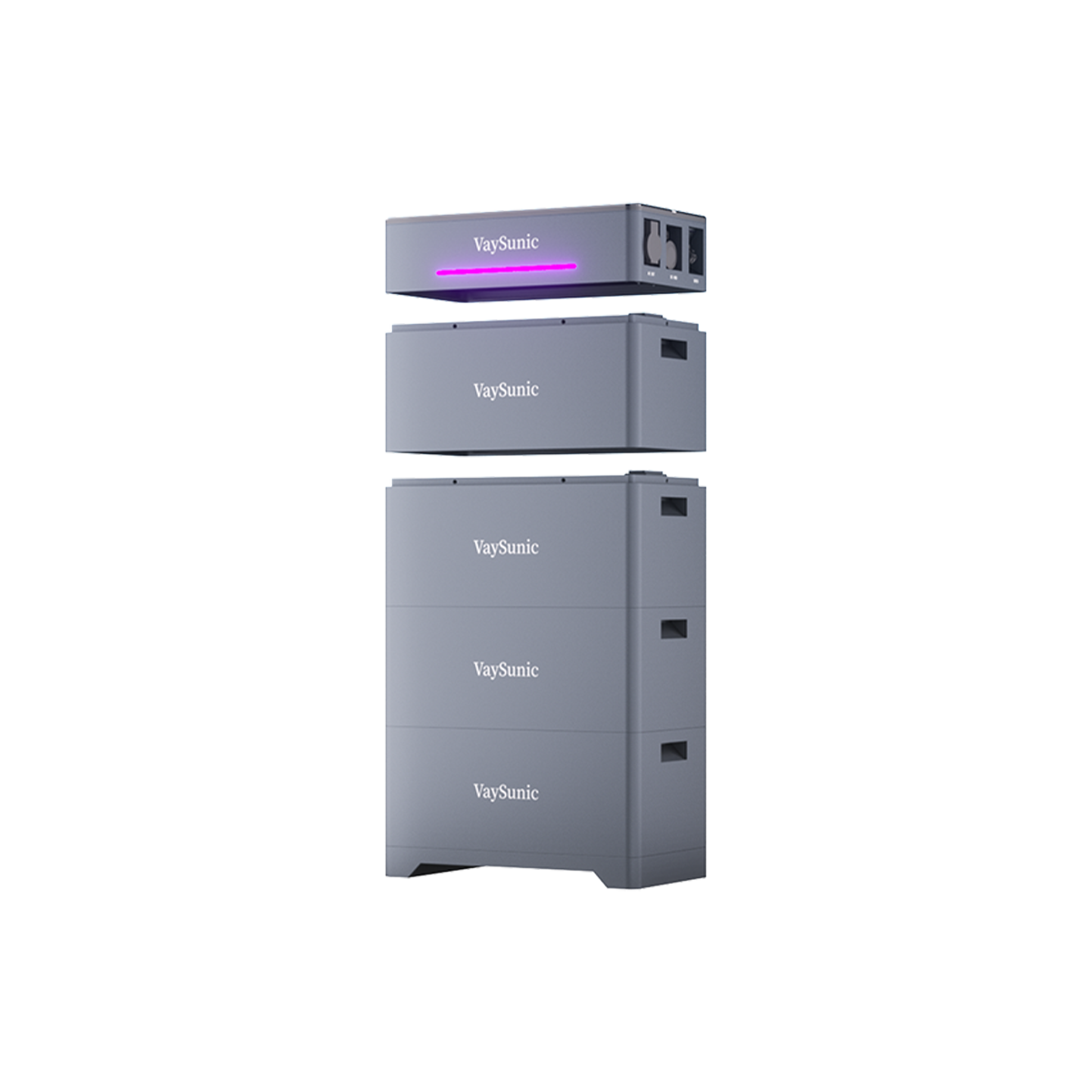

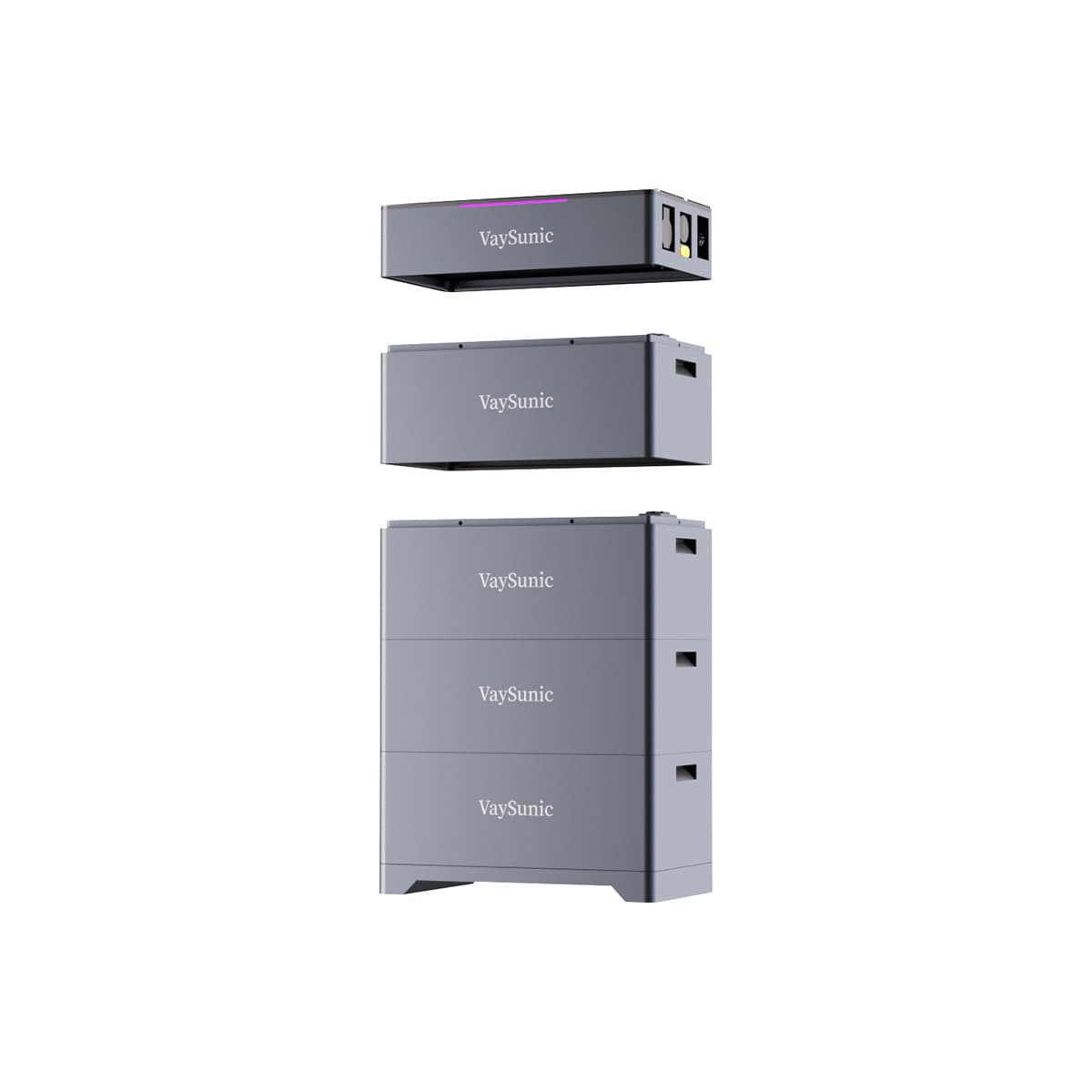

Starts at 2.5 kWh. Stacks to 32.5 kWh.

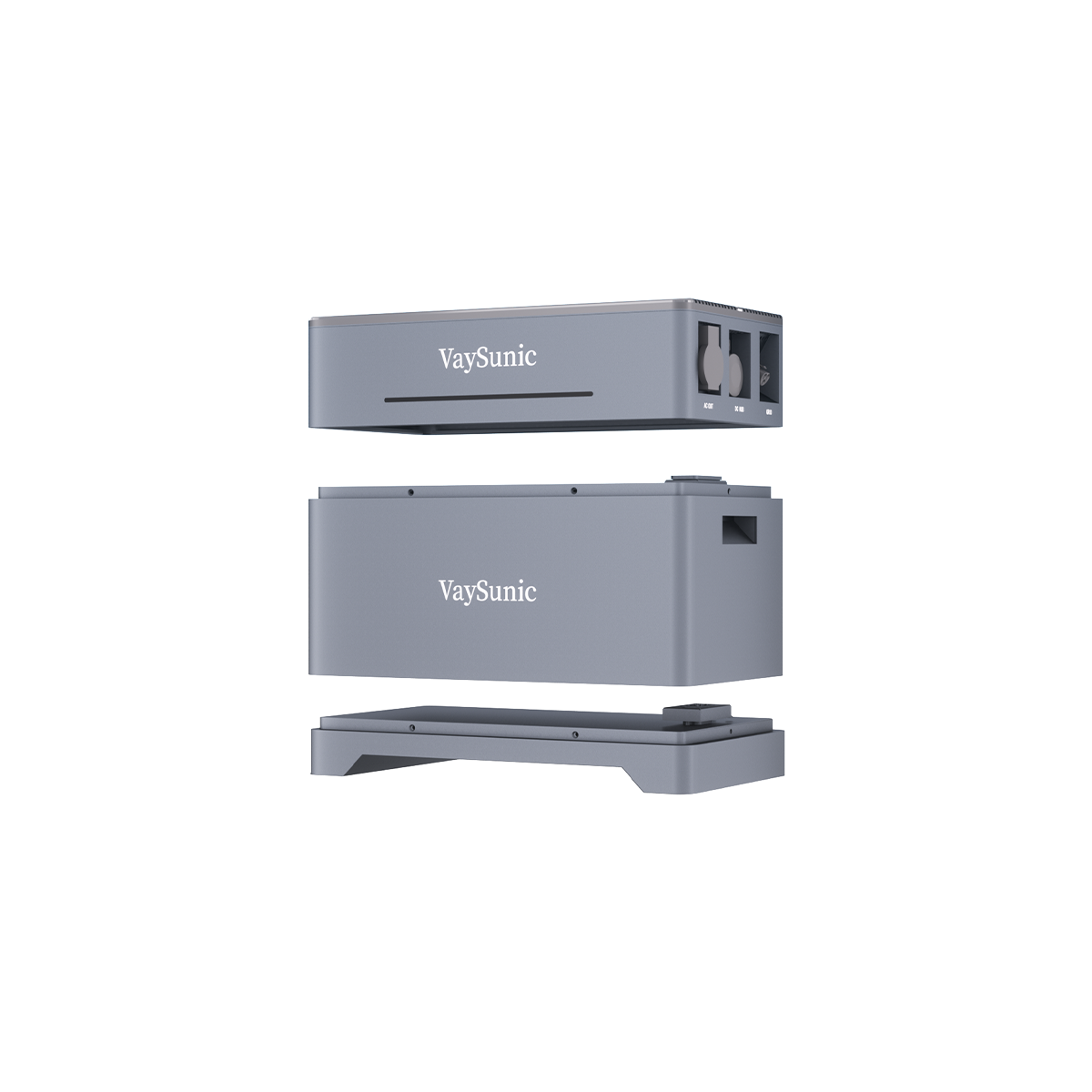

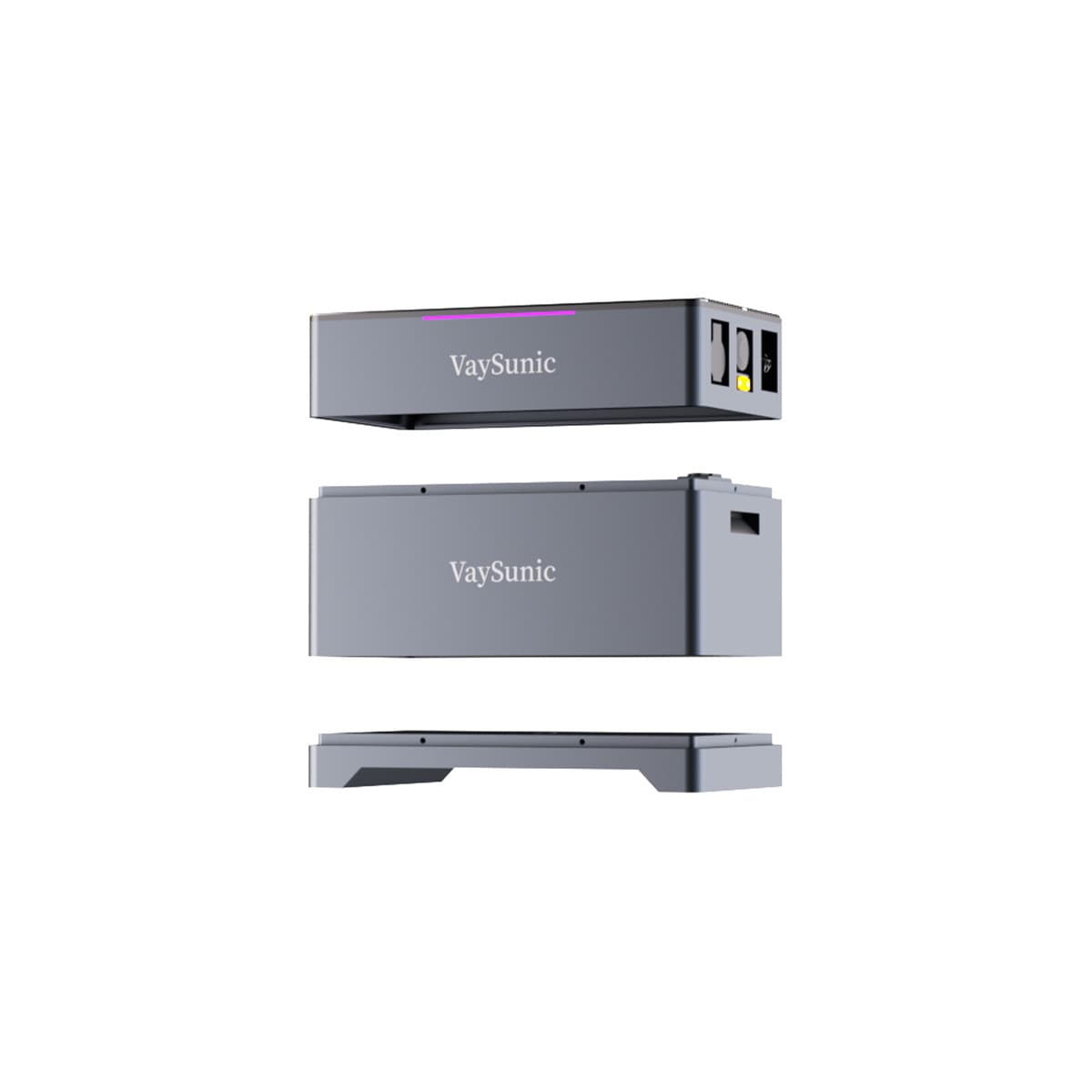

The VA unit sits on top with 2.5 kWh built in. VB5000D packs of 5 kWh stack beneath it with flush fronts, up to six packs.

2.5 kWhVA

One unit, 2.5 kWh built in.
The VA is the hybrid microinverter and battery in one housing, with 4 MPPT solar inputs and a dedicated backup (EPS) port.
290 mm · 26 kg

Heights and weights calculated from module dimensions and weights, excluding base and brackets. Secure every stack with the anti-tip accessory.

VaySunic Shield™ Technology

Protection from the cell to the grid.

Low-voltage design

6.4V

VA battery

12.8V

VB5000D pack

60V DC

Max. per PV input

5-layer battery protection

Temperature management

Monitoring + self-heating

Thermal insulation

In every module

Electrical insulation

In every module

Pressure relief

Valve in every module

Aerosol suppression

Automatic

System protection

Insulation monitoring

DC surge protection

Anti-islanding

Four ways to run your battery, set in the app.

Pick a mode, change the settings and watch the day change: where the energy comes from and what it costs.

PowerCube · Smart

Solar first✓

Backup reserve20%

Zero export

ChargeFlow

The reserve stays in the battery for outages.

Time of day 19:00 · 0.40 €/kWh

Smart

Self-consumption: solar covers the home first, the surplus charges the battery and the battery supplies the home in the evening. With EnergyPilot, grid feed-in can be limited to zero. With a ChargeFlow wallbox, choose whether the solar surplus goes to the battery first or to the car first.

Best for Everyday use with as much of your own solar as possible.

NeedsPowerCube on its ownEnergyPilot (for zero export)

A day in Smart mode

Solar outputHome from solarHome from batteryHome from gridBattery from solarBattery from gridFed into the gridBattery level

Electricity cost today0.23 €Without battery: 1.98 € · −88%

Bought from the grid2.6 kWhWithout battery: 8.7 kWh

Fed into the grid5.5 kWhWithout battery: 11.5 kWh

Solar used at home64%Without battery: 25%

Illustration: PowerCube VA2000D with one VB5000D (7.5 kWh, 2 kW), about 3 kW of solar, a typical home and an example tariff (0.20 / 0.30 / 0.40 € per kWh, feed-in 0.08 €). Modes are those shown in the VIP Cloud app and may be refined with software updates; available functions depend on the market. Zero export needs the EnergyPilot local controller; AI scheduling and dynamic tariffs work through VIP Cloud.

Typical configurations

From balcony to whole home.

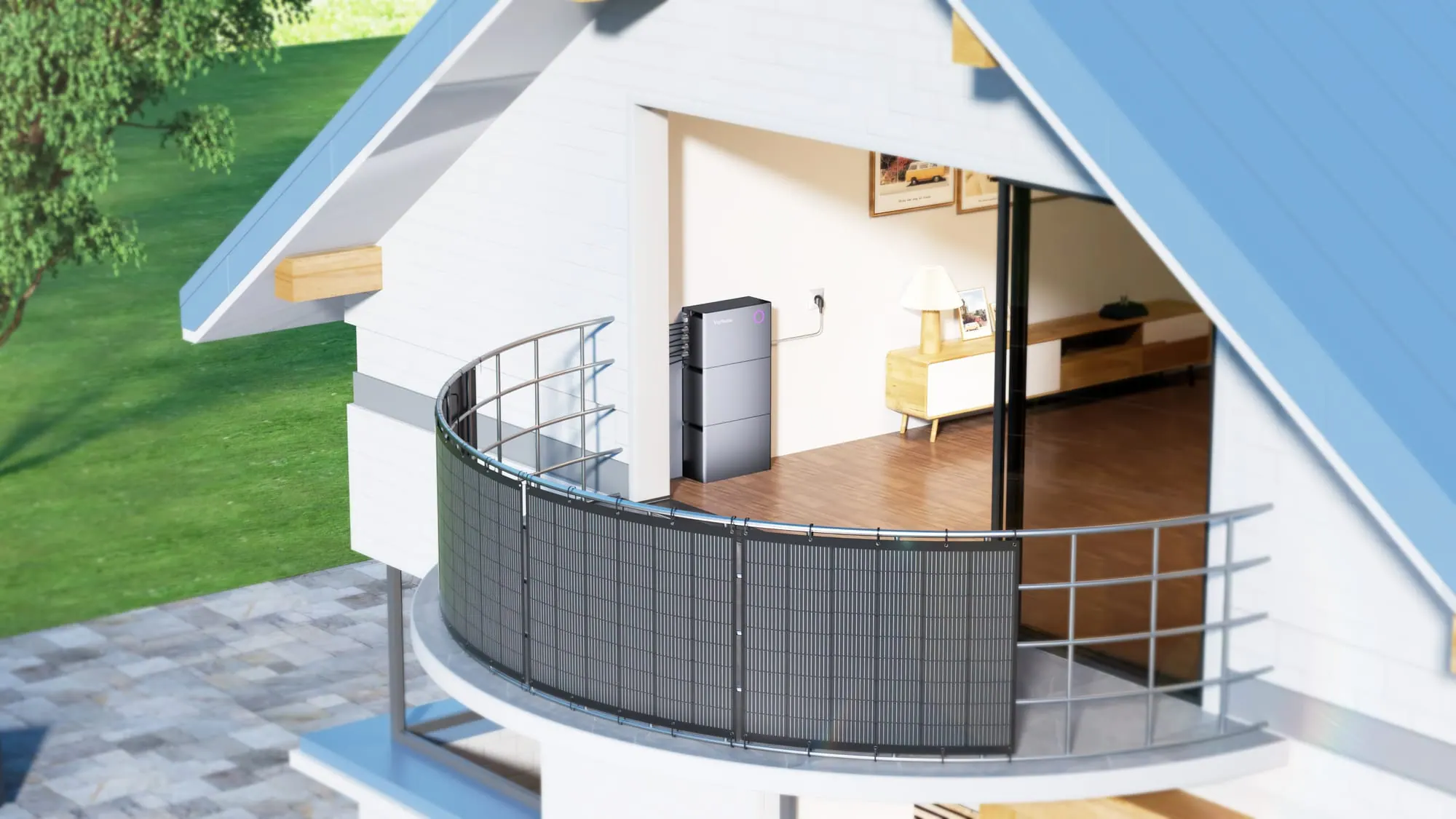

Balcony

VA800D (+ 1 × VB5000D)

2.5–7.5 kWh · 800 W AC · up to 3,600 W backup*

Garden

VA2000D + 1–2 × VB5000D

7.5–12.5 kWh · 2,000 W AC · 3,600 W backup

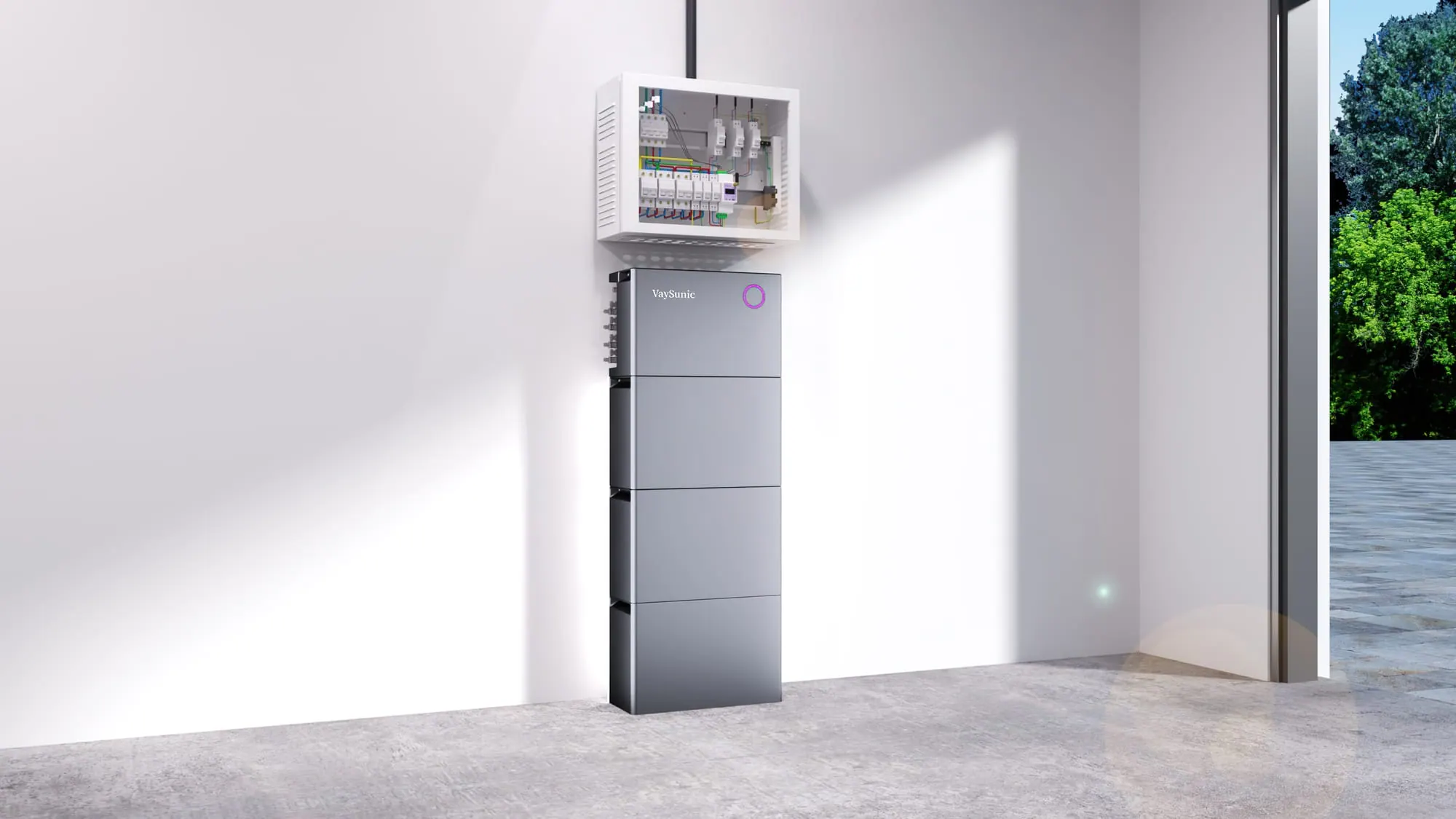

Rooftop & retrofit

VA3600D + 3–6 × VB5000D

17.5–32.5 kWh · 3,600 W AC · 3,600 W backup

* 1,200 W from the built-in battery alone. VA800D may be connected by the owner where local rules allow; VB5000D packs are installed by a qualified electrician. Typical configurations are for guidance only; a dedicated protected circuit is recommended. Retrofit: add PowerCube and EnergyPilot to an existing PV system.

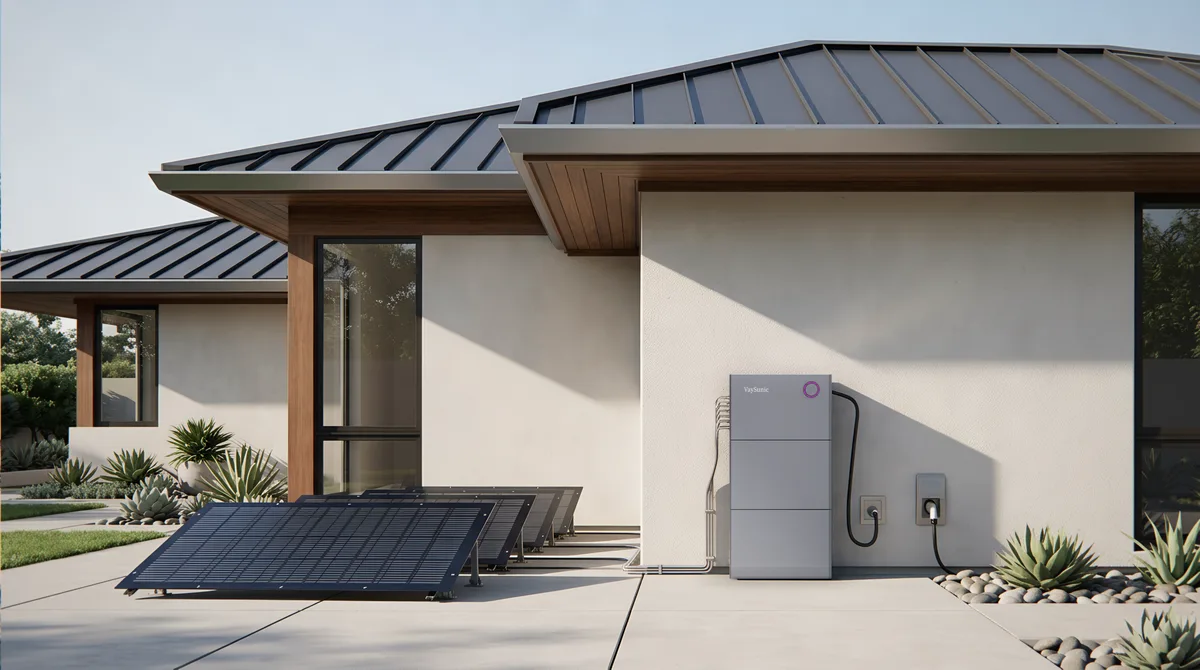

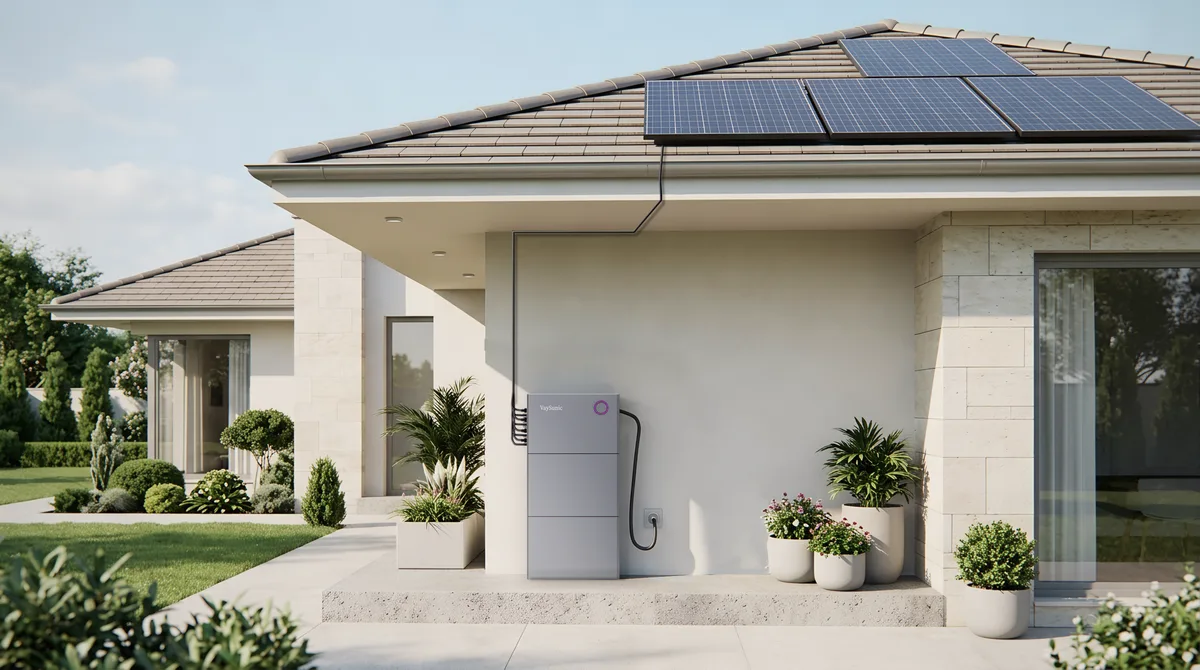

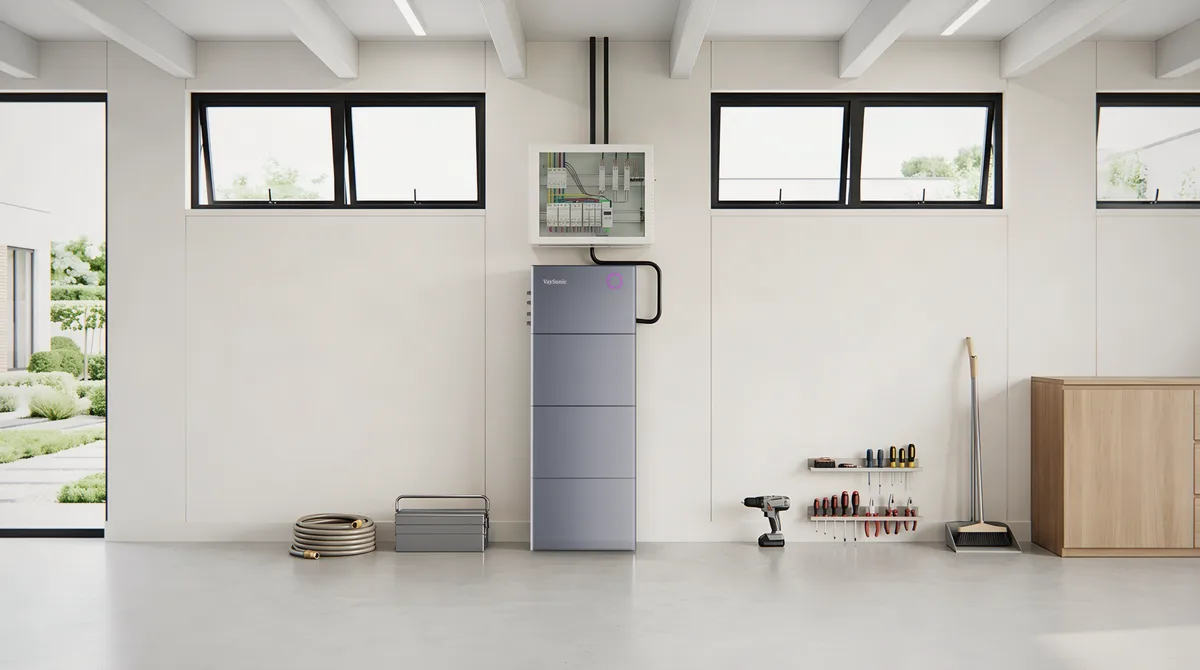

At home

Indoors or outdoors, it fits the space.

IP66 housing for the utility room, the garage or an outside wall. Stacks stand flush, with the anti-tip bracket on top.

Illustrative images. Installation, cabling and number of packs depend on the site; outdoor and fixed installations by a qualified electrician.

Specifications

PowerCube series

Configuration	VA	VA + 1	VA + 2	VA + 3	VA + 4	VA + 5	VA + 6
Modular storage · One VA unit, up to six packs
System capacity	2.5 kWh	7.5 kWh	12.5 kWh	17.5 kWh	22.5 kWh	27.5 kWh	32.5 kWh
Battery-only AC output	1,200 W	3,600 W	3,600 W	3,600 W	3,600 W	3,600 W	3,600 W
Stack height	290 mm	613 mm	936 mm	1,259 mm	1,582 mm	1,905 mm	2,228 mm
Stack weight	26 kg	67 kg	108 kg	149 kg	190 kg	231 kg	272 kg

Model	VA800D	VA1200D	VA2000D	VA2500D	VA3000D	VA3600D
Safety system	VaySunic Shield™ Technology: low-voltage design, 5-layer battery protection, system protection
Battery management	Independent Optimizer Technology, one Battery Optimizer in every module
PV input (DC)
Compatible PV module power (Wp)	200–550	400–750	400–750	500–750	610–750	610–750
Max. PV input power	2,000 W (4 × 500)	3,000 W (4 × 750)	3,000 W (4 × 750)	3,000 W (4 × 750)	3,000 W (4 × 750)	3,000 W (4 × 750)
MPPTs / voltage range / max. input	4 / 18–60 V / 60 V
Max. input / short-circuit current	20 A / 25 A per MPPT
AC input (grid charging)
Nominal voltage (range) / frequency	230, 240 V (180–275 V) / 50 Hz
Max. input current / max. charging power	13.8 A / 3,000 W
AC output (on-grid)
Rated output power	800 W	1,200 W	2,000 W	2,500 W	3,000 W	3,600 W
Rated / max. output current	3.5 / 3.5 A	5.2 / 16 A	8.7 / 16 A	10.9 / 16 A	13.0 / 16 A	15.7 / 16 A
AC output (backup / EPS)
Max. continuous / peak power	3,600 W / 4,500 W (15 s)
Switchover time (grid to backup)	≤ 10 ms, dedicated EPS port
Battery
Built-in capacity / cell type	2,508.8 Wh / LiFePO₄ (LFP)
Cycle life / self-heating	12,000 cycles / integrated, automatic
Max. expandable capacity	32.5 kWh per system (VA + 6 × VB5000D)
VB5000D capacity / max. power	5,017.6 Wh / 2,500 W (0.5C)
Charging / discharging temperature	−20 to 55 °C (cell temperature, with self-heating)
General
VA dimensions (W × D × H) / weight	450 × 210 × 290 mm / 26 ± 0.5 kg
VB5000D dimensions (W × D × H) / weight	450 × 253 × 323 mm / 41 ± 0.5 kg
Ingress protection	IP66
Operating ambient temperature	−20 to 50 °C (derating at high temperatures)
Cooling / mounting	Natural convection, fanless / floor-standing, anti-tip accessory
Communication / monitoring	Wi-Fi (2.4 GHz), LAN, CAN (battery) / LED indicators, VIP Cloud
Fire safety	Aerosol fire suppression in the VA and every VB5000D pack, automatic activation
Design life	15 years

New and existing packs can be mixed. For more capacity, three or more systems can run in parallel.
Battery-only output; PV makes up the rest. Grid output is capped by the VA rating (800 / 1,200 / 2,000 / 2,500 / 3,000 / 3,600 W); backup output is 3,600 W on all models.
Calculated from module dimensions and weights, excluding base and brackets. Secure every stack with the anti-tip accessory. The VA + 6 × VB5000D configuration requires additional anti-tip reinforcement.
Keep module Voc below 60 V at the lowest expected site temperature — Voc rises in the cold.
Rated power is reached with PV and battery supplying together. Battery-only AC output: 1,200 W with 2.5 kWh, 3,600 W with 7.5 kWh or more.
Values measured in the VaySunic laboratory under specific test conditions; they are typical values, not warranted values.

* VA and VB5000D enclosures are rated IP66; the EPS socket is rated IP65. ** Cycle life measured under laboratory test conditions; actual life depends on temperature, charge/discharge rate and depth of discharge. *** On-grid output depends on the model and local limits. Off-grid needs PV and battery together, or 7.5 kWh or more; built-in 2.5 kWh alone: 1,200 W. Nominal battery voltages describe the modules. PowerCube uses module-level DC/DC control between modules. The Battery Optimizer is a dedicated DC/DC converter in each module. Diagrams and app screens are illustrative. Supported combinations of battery capacity, state of charge, state of health and hardware versions are determined by the system compatibility requirements. Protection functions describe design features and do not guarantee the outcome of any specific event. Always install according to the manual and local regulations.

A single plug-in unit up to 800 W (such as SolarCore VM800WE-P2 or SolarKit) and PowerCube VA800D may be connected by the owner where local rules allow; where national rules permit higher plug-in limits, SolarCore P4 can also be connected by plug. Other SolarCore systems on an AC trunk cable, PowerCube VA2000D and above, VB5000D packs, SolarHub, ChargeFlow and EnergyPilot are installed by a qualified electrician.

Warranty & documents

Covered, and documented.

10years

10-year limited warranty (Europe)

Including battery capacity — subject to the limits in the Limited Warranty.
Your statutory rights are not affected.

See warranty periods

Datasheet values are typical lab values and are not warranted values.
