Microinverter · 4 MPPT

SolarCore P4

Four modules on one unit for rooftop arrays — fewer units and connections per kW, each module still on its own MPPT.

VM2000W-P4VM2100W-P4VM2250W-P4
Request a quote Download datasheetExplore in 3D
SolarCore P4 solar microinverter: VM2000W-P4, VM2100W-P4, VM2250W-P4SolarSolarCore P4
SolarCore P4 solar microinverter: VM2000W-P4, VM2100W-P4, VM2250W-P4
2,000–2,250 VARated output
4 MPPTFour modules per unit
~10 sWi-Fi pairing*
IP67Metal housing, −40 to 65 °C

* With good signal, a working network and a normal device connection.

Highlights

Fewer units per roof.

  • Four MPPTs per unit

    Up to 2,250 W per unit, MPPT efficiency up to 99.8%.

  • Wi-Fi pairing in about 10 seconds*

    Added in the VIP Cloud app over 2.4 GHz Wi-Fi.

    * With good signal, a working network and a normal device connection.

  • Built for rooftops

    Rooftop and garden arrays, with fewer AC connections per kW.

  • −40 to 65 °C

    IP67 metal housing, fanless, galvanically isolated.

Keep module Voc below 60 V at the lowest expected site temperature — Voc rises in the cold.

How it grows

Four modules per unit. Built up unit by unit.

SolarCore P4 is made for rooftop and garden arrays, usually on an AC trunk cable installed by a qualified electrician. In countries with higher plug-in limits it can also connect by plug.

HomeDistribution boardGridSolarCore P4Solar moduleSolarCore P4T-connectorAC trunk cableAC boxInstalled by an electricianOne smart systemEnergyPilotCTPowerCube

  1. Four modules on one microinverter.

    One SolarCore P4 takes four modules, each on its own MPPT. Its AC cable joins the trunk cable through a T-connector and runs via an AC box to the distribution board.

    • 4 modules
    • SolarCore P4
    • T-connector
    • AC box
    • Distribution board

Illustration simplified. Systems on an AC trunk cable are installed by a qualified electrician.

Network set-up

Paired in about 10 seconds*.

Power the microinverter, open the VIP Cloud app and add it over Wi-Fi. It joins the home network directly — no gateway, no separate data logger — and starts reporting live data in about 10 seconds*.

  • Direct 2.4 GHz Wi-Fi, no extra hardware
  • Guided pairing in the VIP Cloud app
  • Live output and yield history from the first minute

* With good signal, a working network and a normal device connection.

Paired in about 10 seconds*.
Where it fits

Rooftop and garden arrays.

Rooftop arrays
Rooftop

Rooftop arrays

Up to four modules per unit on one AC trunk cable

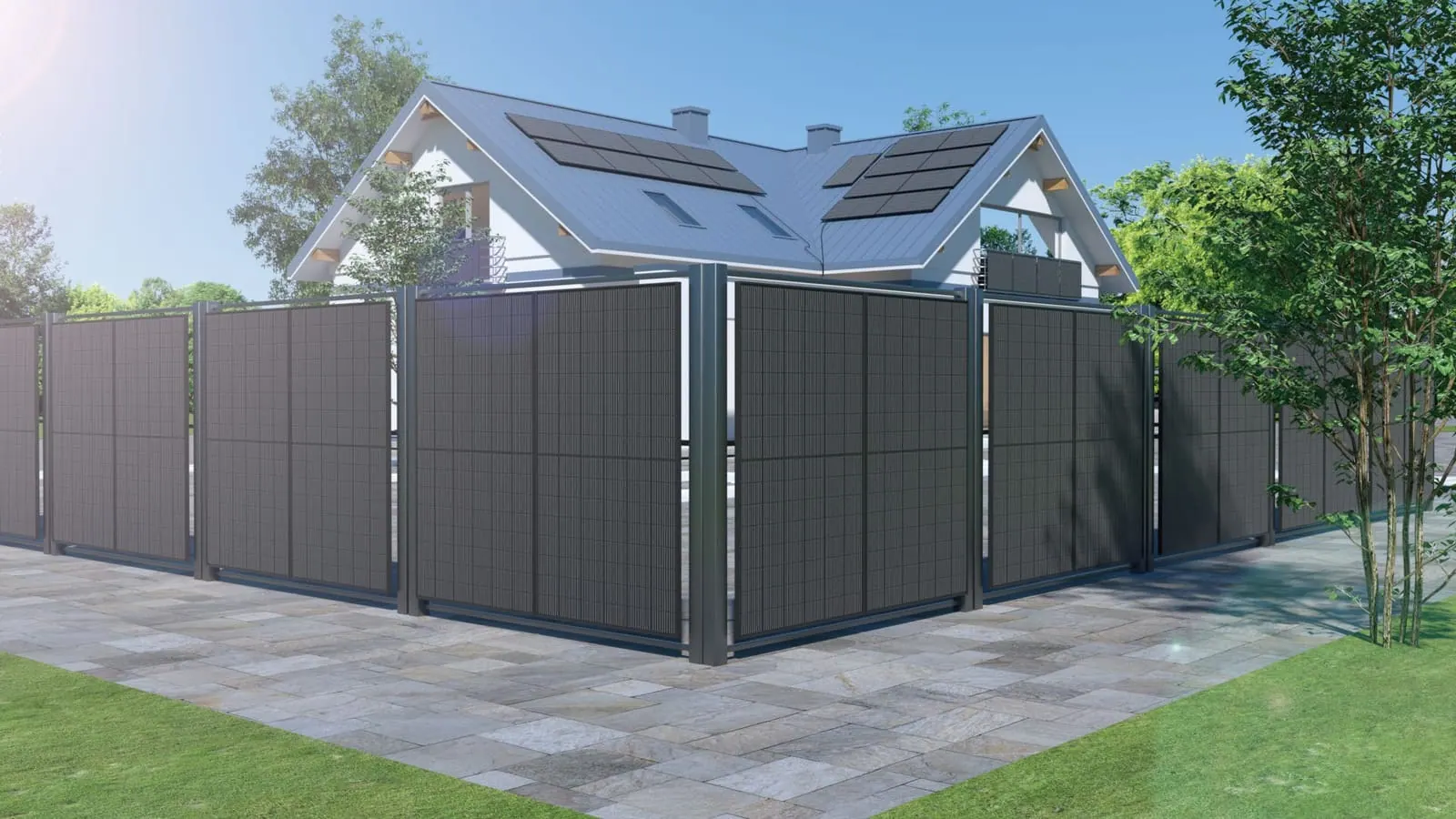

Ground and carport arrays
Garden

Ground and carport arrays

Installed by a qualified electrician

SolarCore P4 usually connects to the distribution board through an AC trunk cable, installed by a qualified electrician. Where national rules permit higher plug-in limits, it can also be connected by plug.

Watch

Product overview.

SolarCore P4 — product overview

Playing a video loads it from YouTube (Google), which then receives your IP address. Privacy policy

Specifications

SolarCore VM-P4

ModelVM2000W-P4VM2100W-P4VM2250W-P4
Rated output (VA)2,0002,1002,250
Rated output current (A)8.89.29.9
Compatible module power (Wp)400–670400–670400–700
Peak efficiency96.6%96.6%96.5%
MPPT efficiencyup to 99.8%
Max. units per branch (4 / 6 mm²)3 / 4
PV input (DC)
MPPTs / inputs per MPPT4 / 1
Operating / MPPT voltage range14–61 V / 20–60 V
Start-up voltage18 V
Max. input voltage61 V
Max. input / short-circuit current per MPPT18 A / 25 A
AC output
Nominal voltage (range)220–240 V (180–275 V)
Nominal frequency50 / 60 Hz
Max. output overcurrent / fault current13.9 A / 13.9 A
Power factor / THD> 0.99 (default), adjustable / < 3%
Night-time power consumption< 50 mW
General
Dimensions (W × H × D) / weight347 × 260 × 36.5 mm / 5.1 kg
Housing / ingress protectionMetal / IP67 (NEMA 6), outdoor
Operating ambient temperature−40 to 65 °C (derating at high temperatures)
Relative humidity / max. altitude0–100%, non-condensing / 2,000 m
Cooling / isolationNatural convection, fanless / galvanically isolated
Communication / monitoringWi-Fi (2.4 GHz) / VIP Cloud
Zero export controlVia EnergyPilot local EMS controller (optional)
  1. Keep module Voc below 60 V at the lowest expected site temperature — Voc rises in the cold.
  2. SolarCore P4 must be installed by a qualified electrician. Units per branch depend on the AC cable cross-section.
  3. Values measured in the VaySunic laboratory under specific test conditions; they are typical values, not warranted values.

A single plug-in unit up to 800 W (such as SolarCore VM800WE-P2 or SolarKit) and PowerCube VA800D may be connected by the owner where local rules allow; where national rules permit higher plug-in limits, SolarCore P4 can also be connected by plug. Other SolarCore systems on an AC trunk cable, PowerCube VA2000D and above, VB5000D packs, SolarHub, ChargeFlow and EnergyPilot are installed by a qualified electrician.

Warranty & documents

Covered, and documented.

12years

12-year limited warranty (Europe)

  • Your statutory rights are not affected.
See warranty periods

Datasheet values are typical lab values and are not warranted values.

PDFSolarCore P4 datasheetSpecifications, PDFEULimited WarrantyEurope · warranty periodsALLDownload centreCertificates, guides and manuals
