Plug and play
IP67 waterproof
Dual sheathing cable
Pure copper conductor
Single-Microinverter System Cable Accessories
Multi-Microinverter System Cable Accessories
Single-Microinverter System Cable Accessories:
P&P AC cable to connect the microinverter to the power outlet.Suitable for VaySunic balcony energy systems.
Multi-Microinverter System Cable Accessories：
The Accessories Kit includes all necessary accessories required for the cabling and installation of an VaySunic Roof Energy System.
We have prepared a method for you to calculate the number of accessories needed for the installation. You can use the "VaySunic_Installation Calculator_V1.0" as an auxiliary tool. On this page, you can click on Support below to access it.
The calculator developed by VaySunic is a highly practical application, especially for distributors and installers working on power station projects.
Read MorePlug and play
IP67 waterproof
Dual sheathing cable
Pure copper conductor

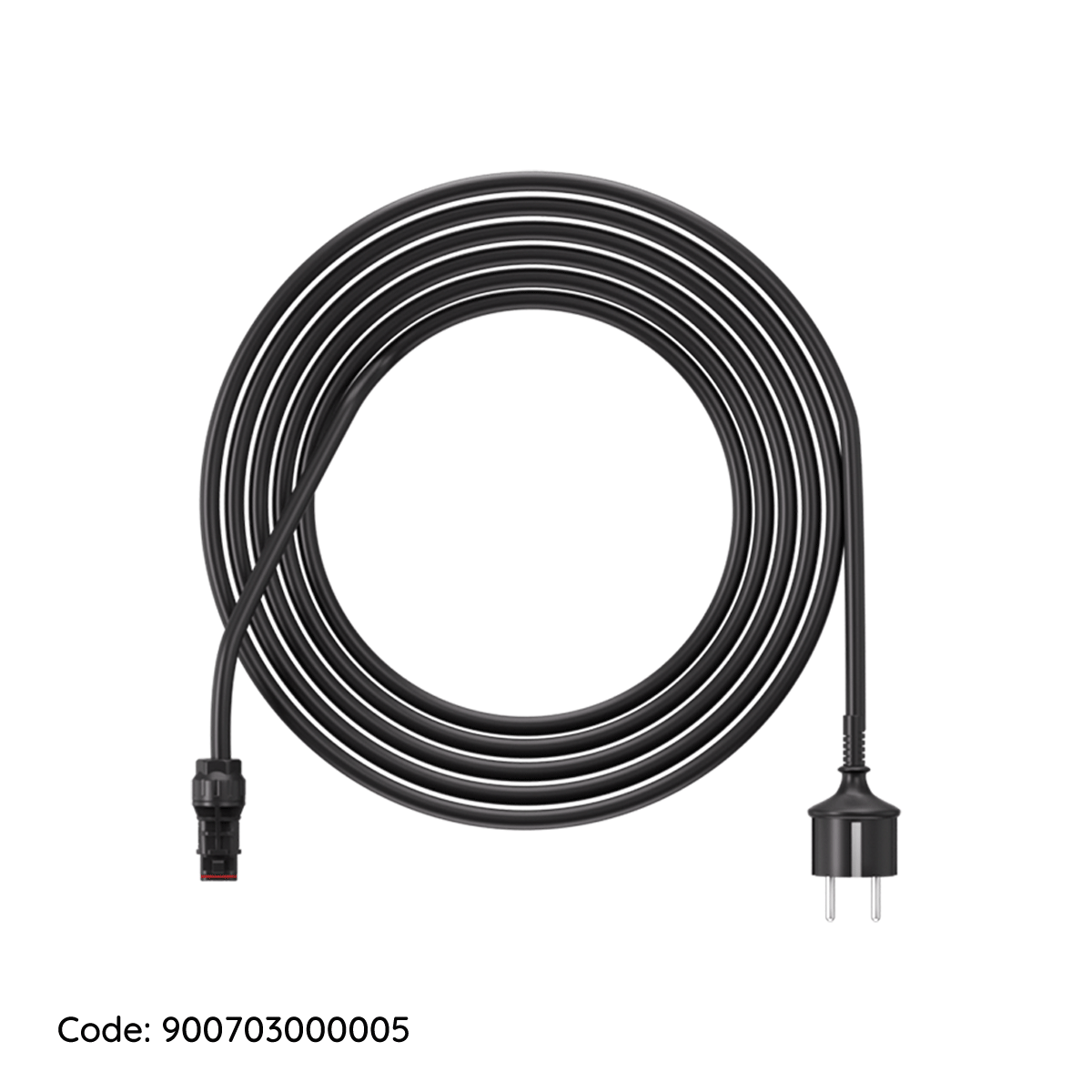

P&P AC Cable
Code: 900703000005
Rated Voltage: 450V/700V
Cable Gauge: 3*1mm²/3*18AWG
Cable Length: 3M, 5M, 10M
Weight: 0.68KG (5M)

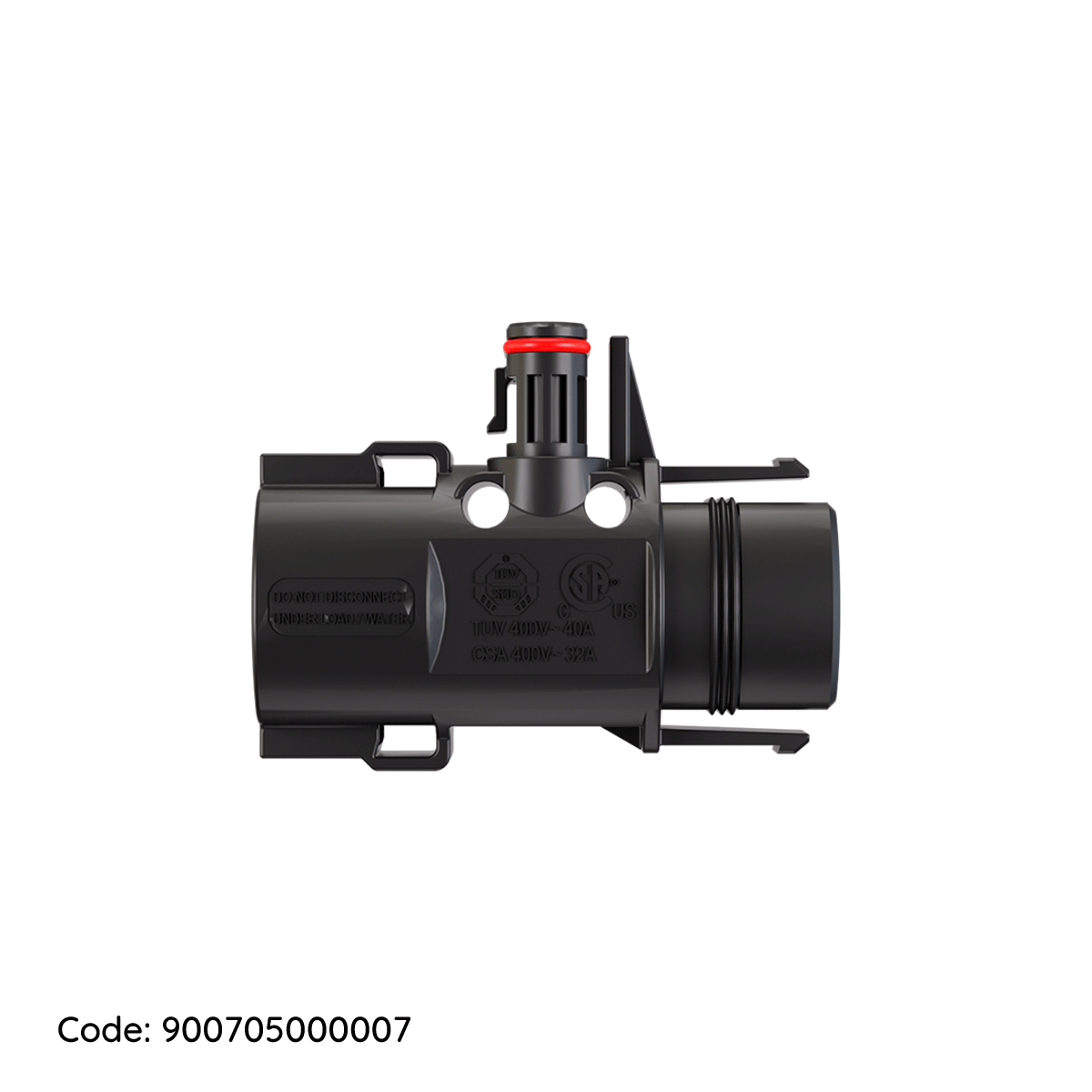

FM Truck Connector
Code: 900705000007
Rated Voltage: 400V
Rated Current: 40A
Width: 60.2MM
Height: 32.0MM
Weight: 0.051KG

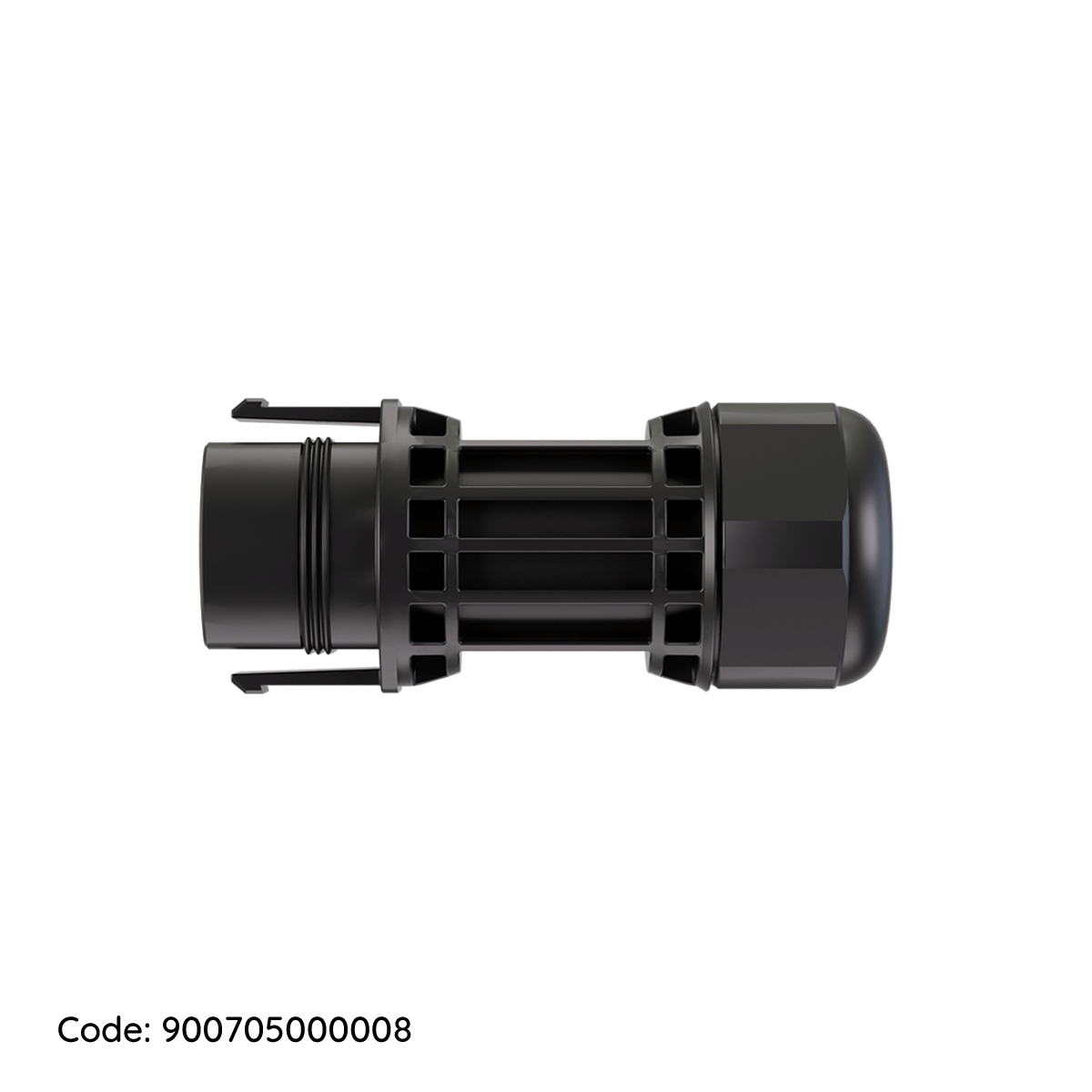

AC Male Connector
Code: 900705000008
Rated Voltage: 400V
Rated Current: 40A
Width: 71.5MM
Height: 31.2MM
Weight: 0.04KG

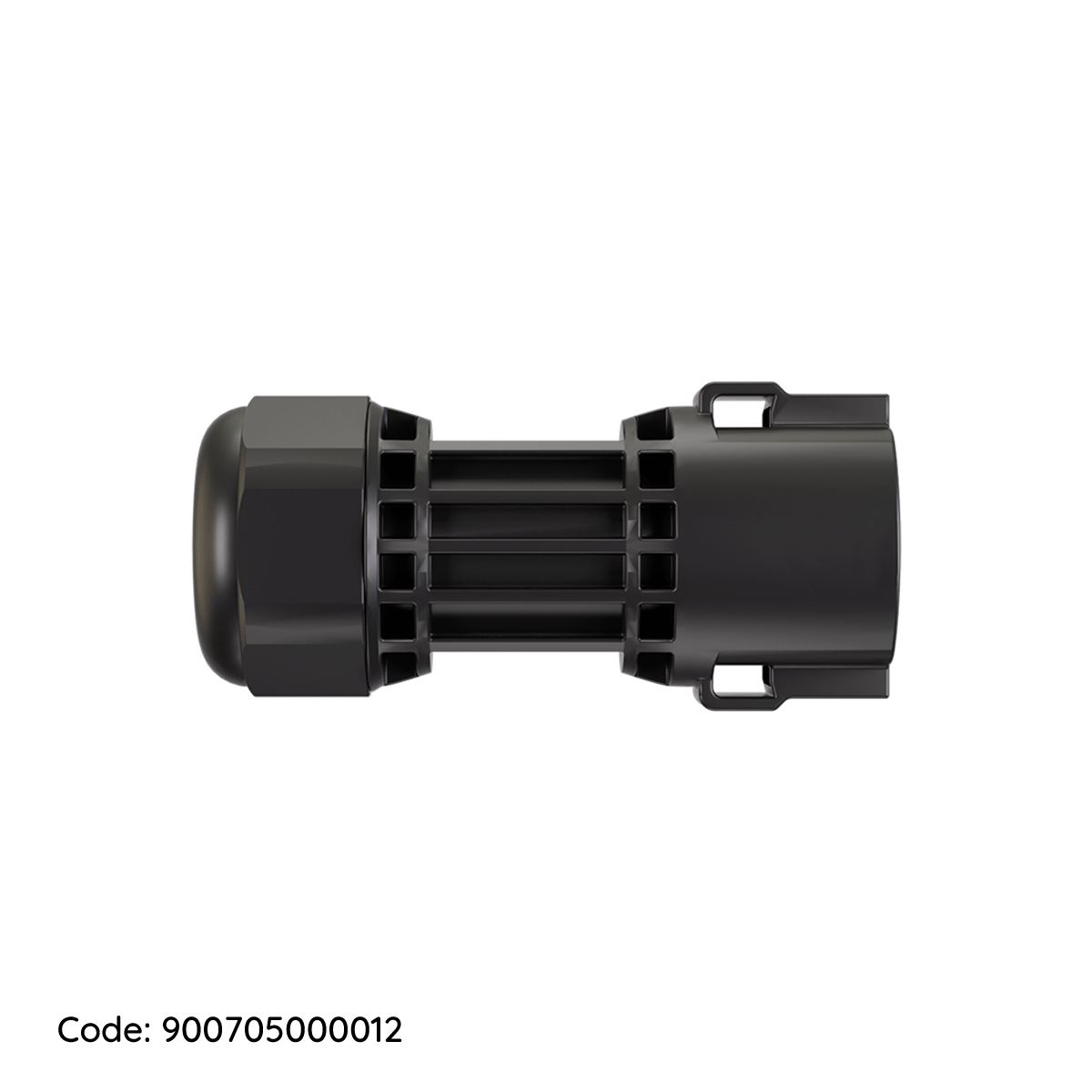

AC Female Connector
Code: 900705000012
Rated Voltage: 400V
Rated Current: 40A
Width: 72.7MM
Height: 34.6MM
Weight: 0.04KG

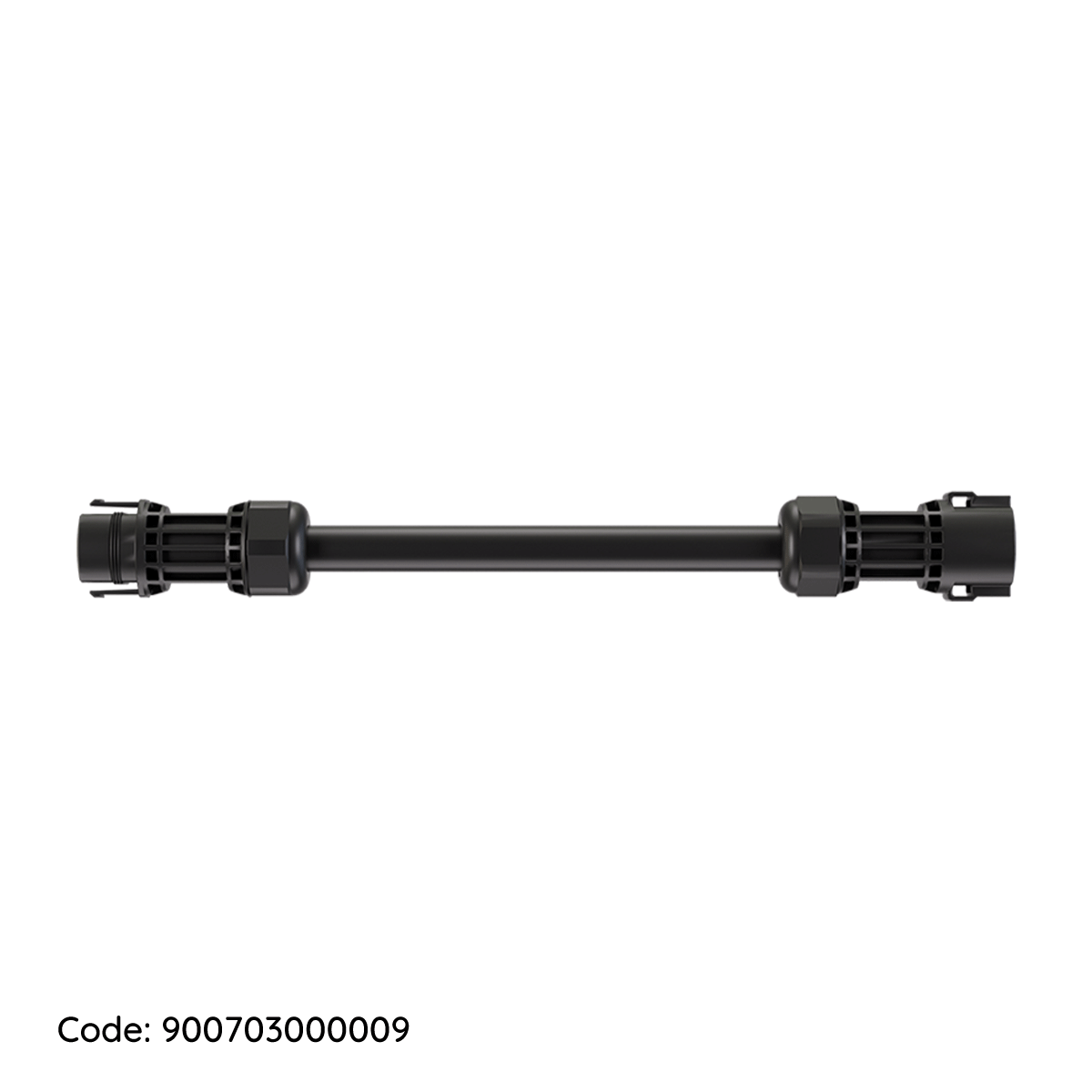

FM AC Cable
Code: 900703000009
Rated Voltage: 450/750V
Cable Gauge: 4.0mm²/12AWG
Cable Length: 2.2M
Weight: 1.1KG

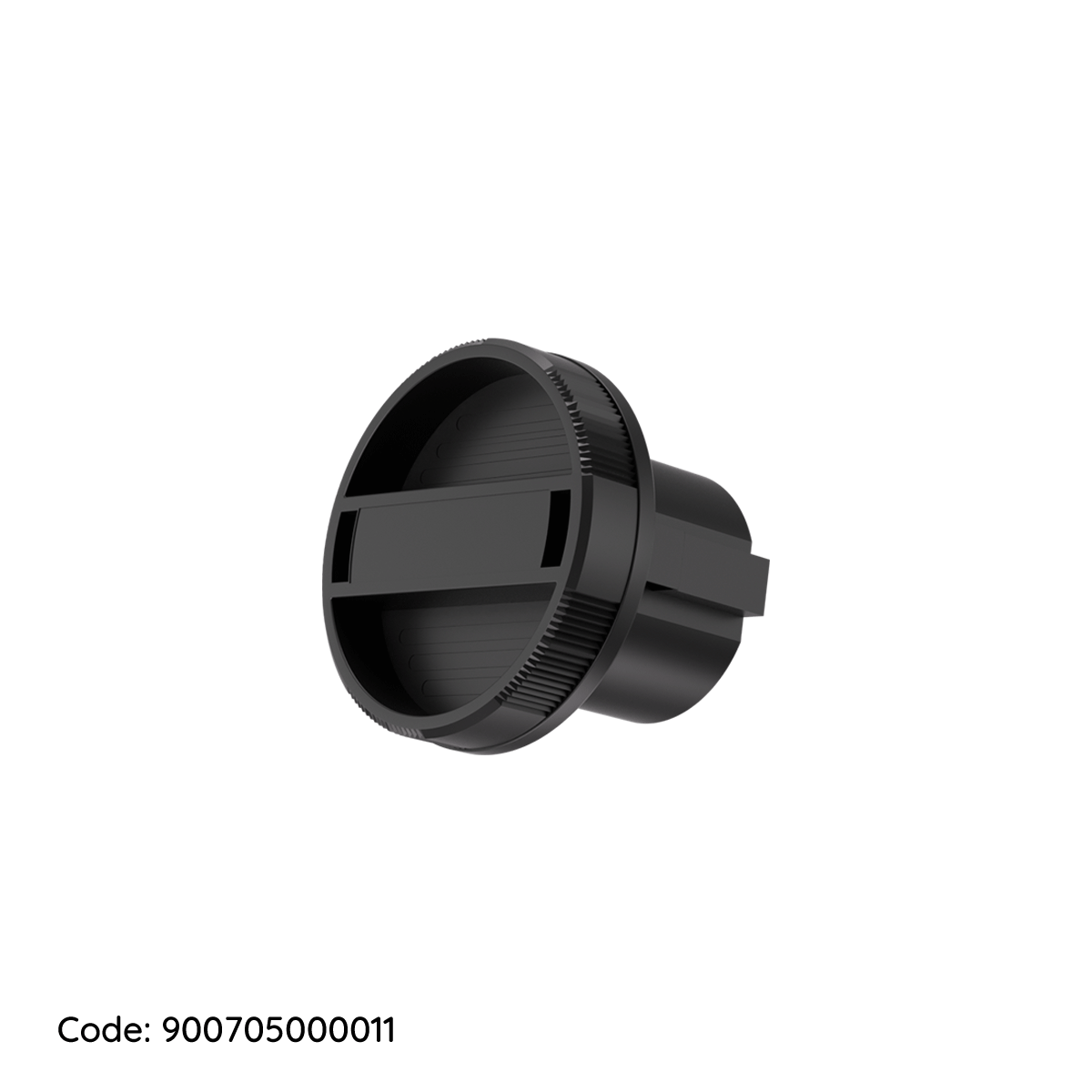

AC Male End-Cap
Code: 900705000011
Protection level: IP68
Width: 27.8MM
Height: 38MM
Weight: 0.012KG

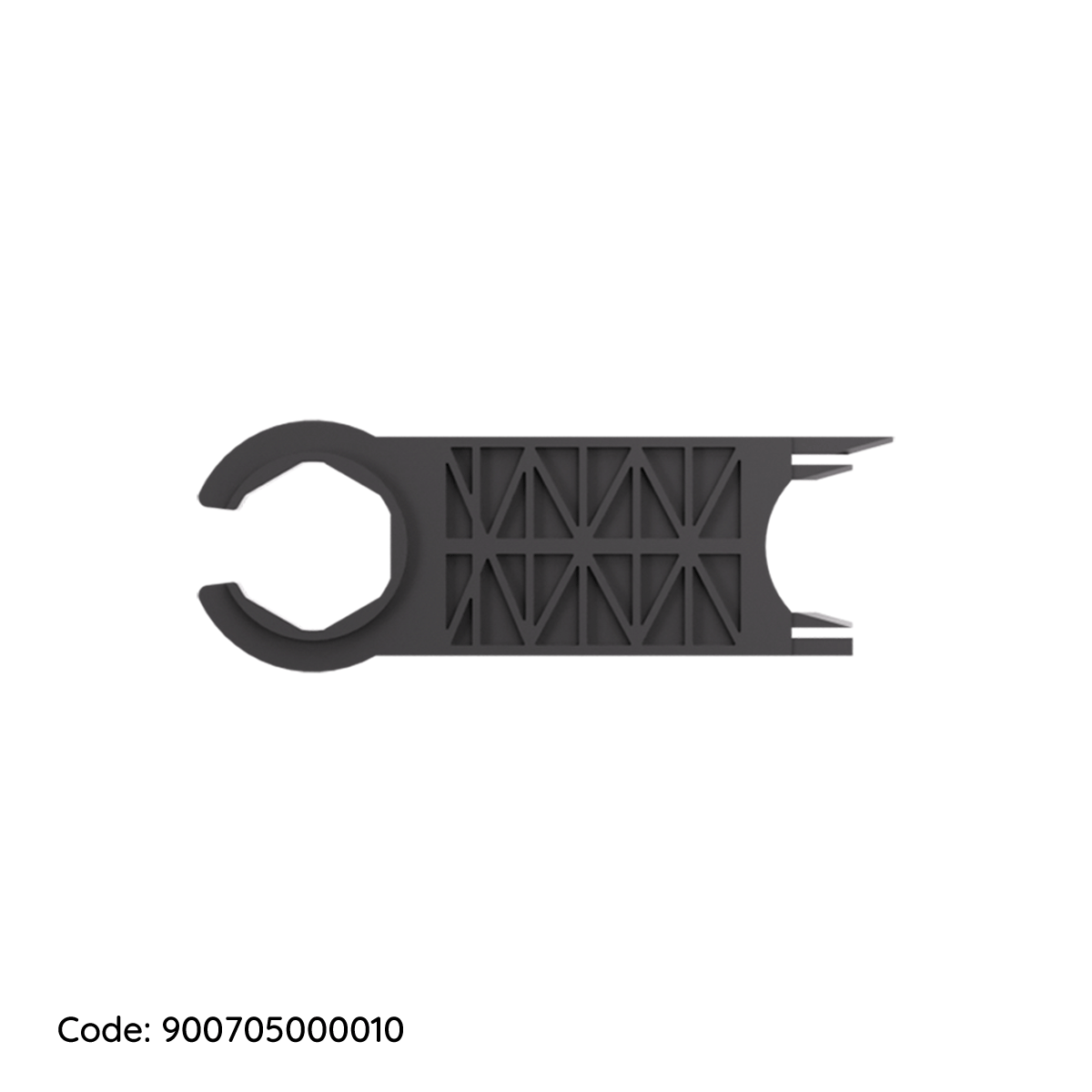

FM Truck Tool
Code: 900705000010
Width: 128.2MM
Height: 43.0MM
Weight: 0.03KG
