MPPT controller technology, ensuring maximum power output
Achieving up to 99% conversion efficiency
High reliability and long service life
Easy installation and maintenance
No regional or seasonal restrictions
WiFi monitoring and remote settings
VSWH-H60L/80L/100L

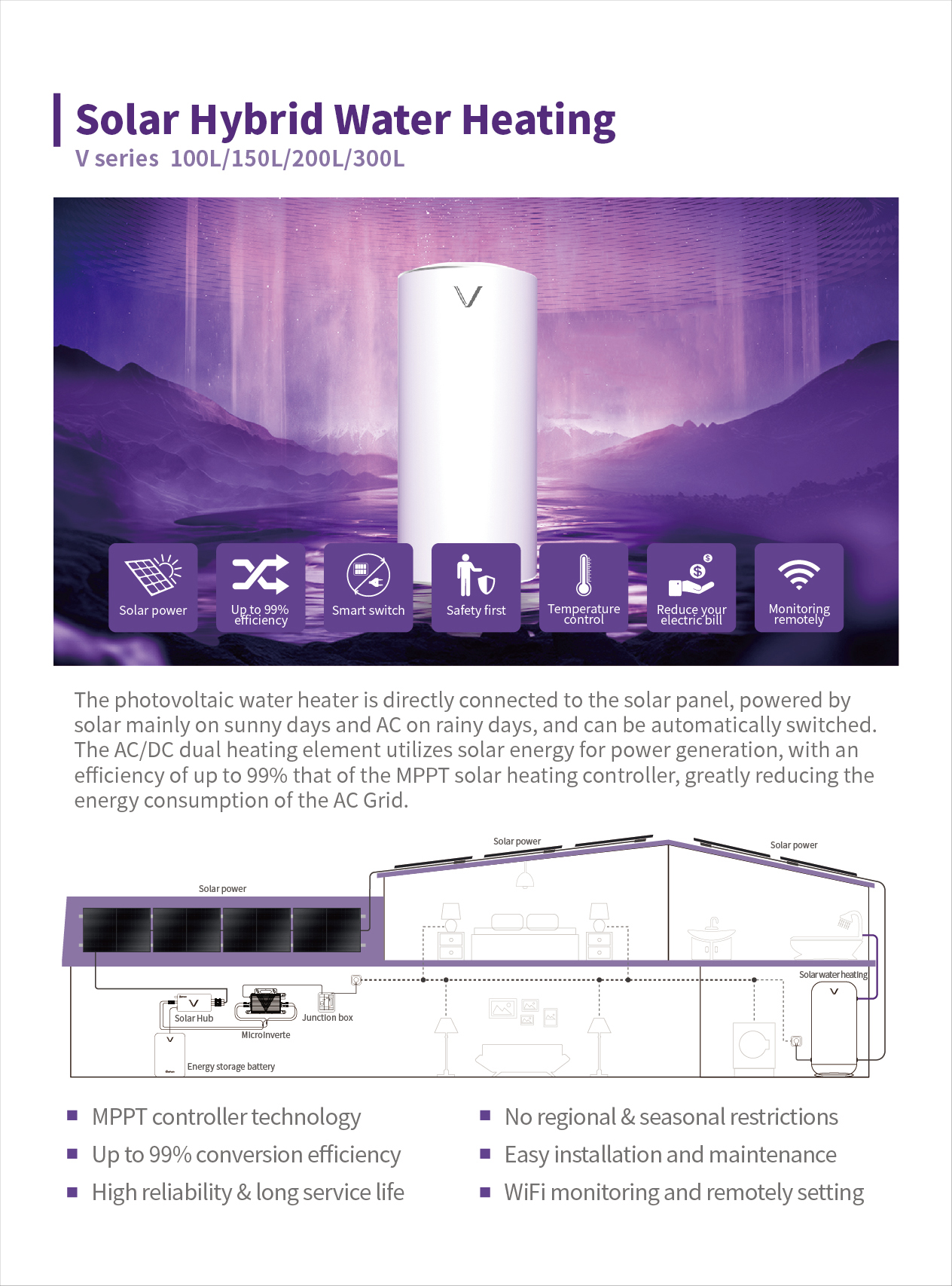

The Solar Hybrid Water Heating is directly connected to the solar panel, powered by solar mainly on sunny days and AC on rainy days, and can be automatically switched.
The AC/DC dual heating element utilizes solar energy for power generation, with an efficiency of up to 99% that of the MPPT solar heating controller, greatly reducing the energy consumption of the AC Grid.
Read MoreMPPT controller technology, ensuring maximum power output
Achieving up to 99% conversion efficiency
High reliability and long service life
Easy installation and maintenance
No regional or seasonal restrictions
WiFi monitoring and remote settings
Volume: 60L
Solar Max output powe: 400W
Recommeded solar panel: 600W
Solar input voltage: 150Vdc Max/25°C
MPPT range: 25Vdc-100Vdc
AC heater power: 2000W
AC voltage: 220V
Protection: Over temperture protection, leakage protection
Tank dimension: Φ470x685
Net weight: 22.5kg
Volume: 80L
Solar Max output power: 450W
Recommeded solar panel: 800W
Solar input voltage: 150Vdc Max/25°C
MPPT range: 25Vdc-100Vdc
AC heater power: 2000W
AC voltage: 220V
Protection: Over temperture protection, leakage protection
Tank dimension: Φ470x815
Net weight: 24.5kg
Volume: 100L
Solar Max output power: 500W
Recommeded solar panel: 1000W
Solar input voltage: 150Vdc Max/25°C
MPPT range: 25Vdc-100Vdc
AC heater power: 2000W
AC voltage: 220V
Protection: Over temperture protection, leakage protection
Tank dimension: Φ470x945
Net weight: 27.4kg
