user-friendly plug-and-play, so easy to operate

lightweight compact design for easy transportation

low-cost investment, high electrical revenues

make your money back quickly

Solar Panel Model: VF100W (BK)

Power (Watts): 100W

Vmp ~ Voltage at Maximum Power (Volts): 16.41V

Voc ~ Open-circuit Voltage (Volts): 20.04Voc

Isc ~ Open-circuit Current (Amps): 6.39A

Imp ~ Maximum Power Current (Amps): 6.17A

PV module dimensions in mm (L x W x H): 1000mm x 630mm x 3mm

PV module weight in kilograms (kg): 2.0kg

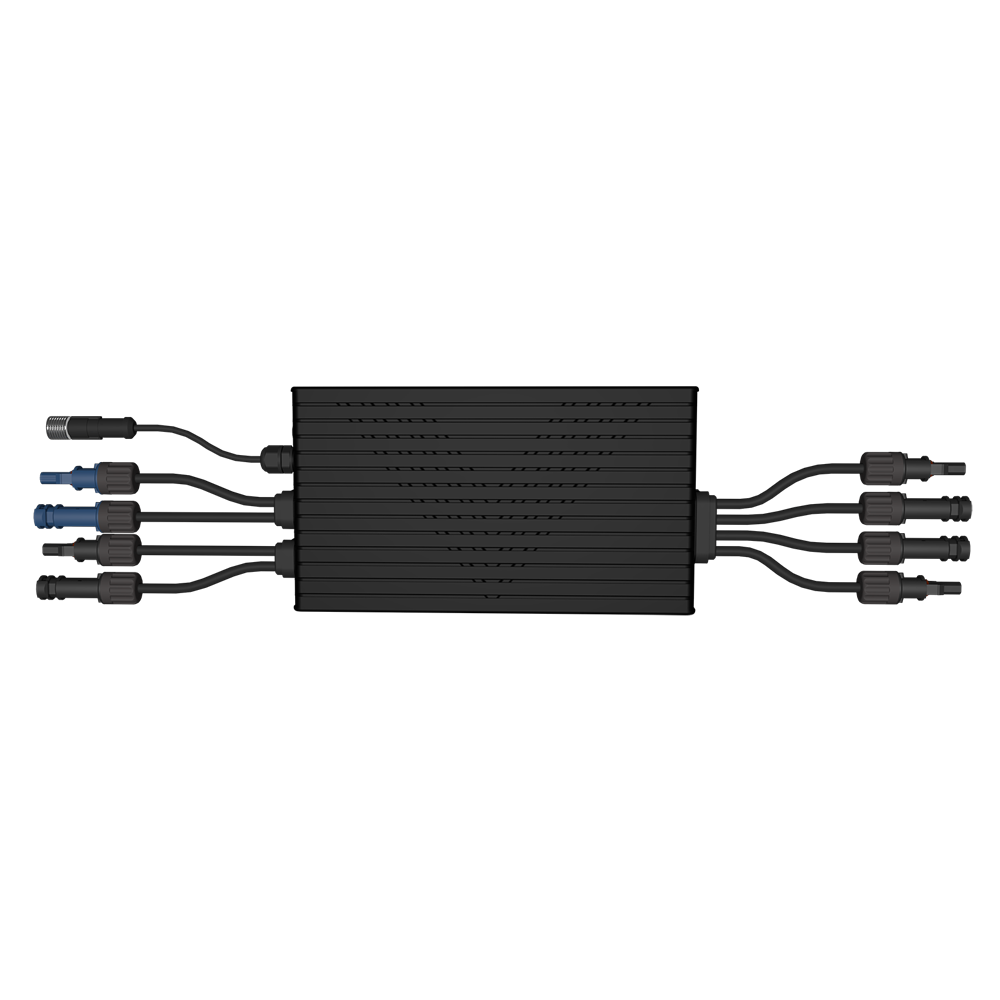

Microinverter Max DC Power (Watts): 430W

Microinverter Max DC Voltage (Volts): 63V

MPPT Voltage Range (Volts): 14-63V

Microinverter dimensions in mm (L x W x H): 181mm x 203mm x 31mm

Microinverter weight in kilograms (kg): 1.75kg

Packing dimensions in mm (L x W x H): 1040mm x 670mm x 100mm

Packing weight in kilograms (kg): 16.5kg

Solar Panel Model: VF200W (BK)

Power (Watts): 200W

Vmp ~ Voltage at Maximum Power (Volts): 15.42V

Voc ~ Open-circuit Voltage (Volts): 18.71Voc

Isc ~ Open-circuit Current (Amps): 13.45A

Imp ~ Maximum Power Current (Amps): 13.01A

PV module dimensions in mm (L x W x H): 1140mm x 915mm x 3mm

PV module weight in kilograms (kg): 3.4kg

Microinverter Max DC Power (Watts): 870W

Microinverter Max DC Voltage (Volts): 63V

MPPT Voltage Range (Volts): 14-63V

Microinverter dimensions in mm (L x W x H): 361mm x 222mm x 36mm

Microinverter weight in kilograms (kg): 3.26kg

Packing dimensions in mm (L x W x H): 1180mm x 950mm x 100mm

Packing weight in kilograms (kg): 23.5kg

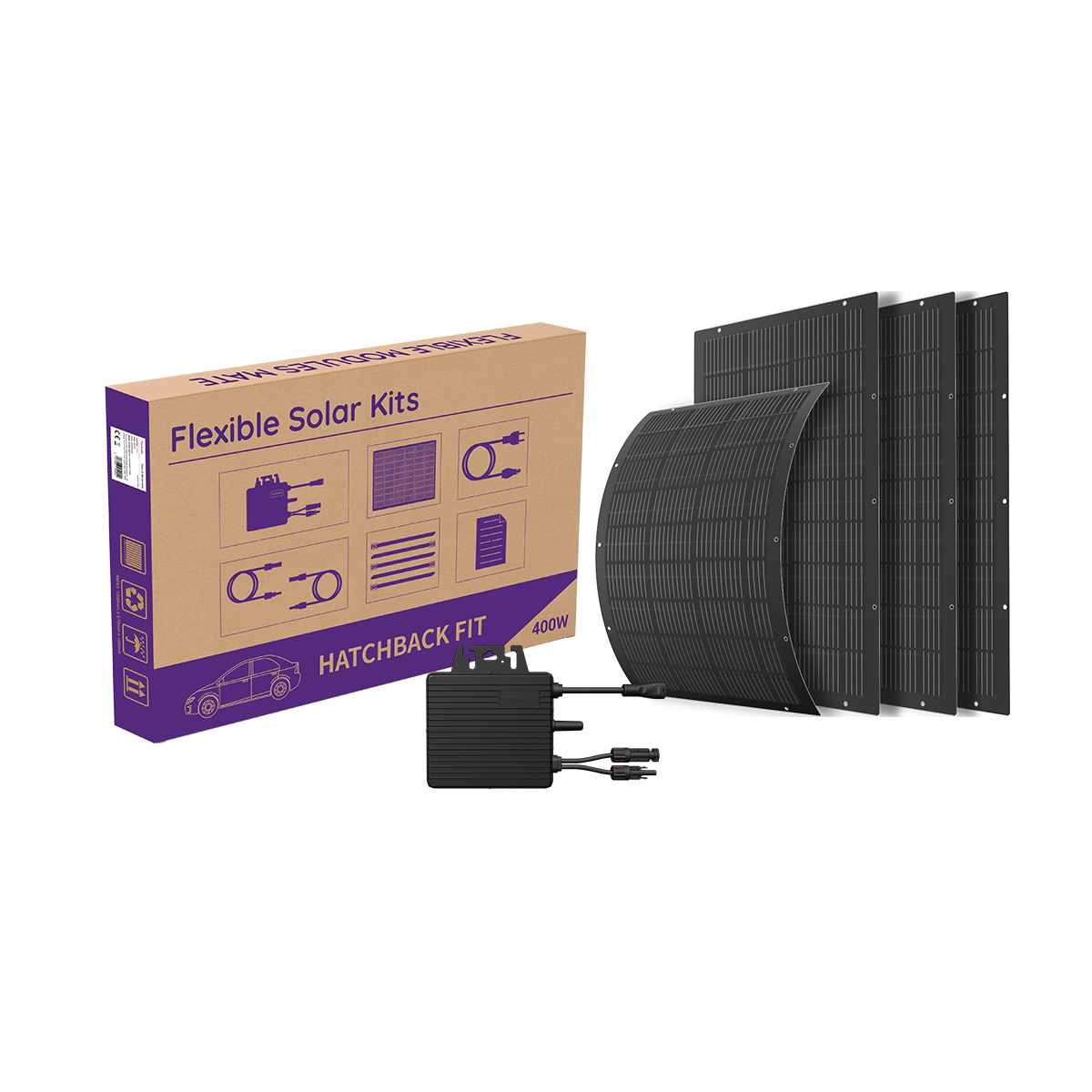

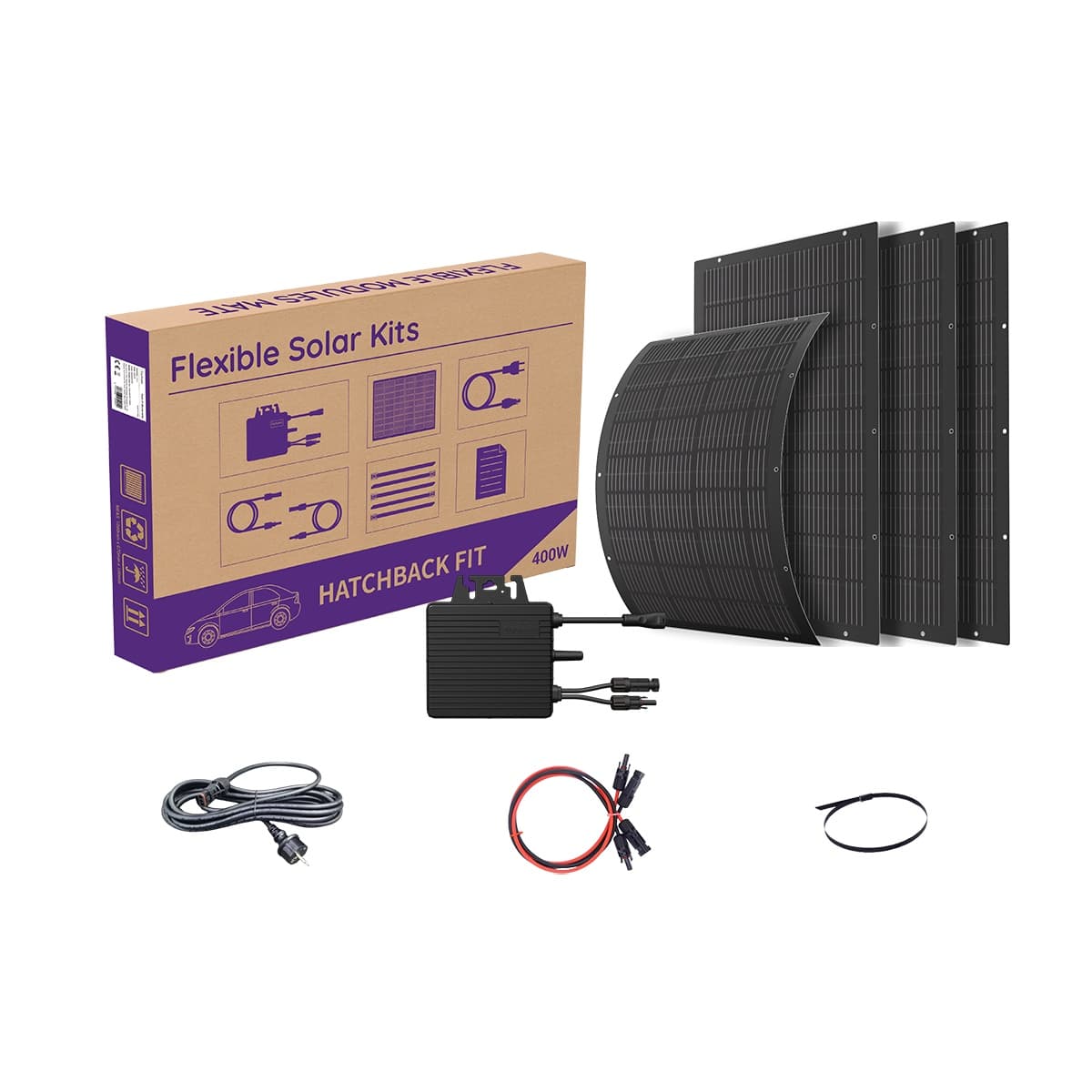

VFSK Series 400W_Datasheet_VaySunic_Global_V1.0

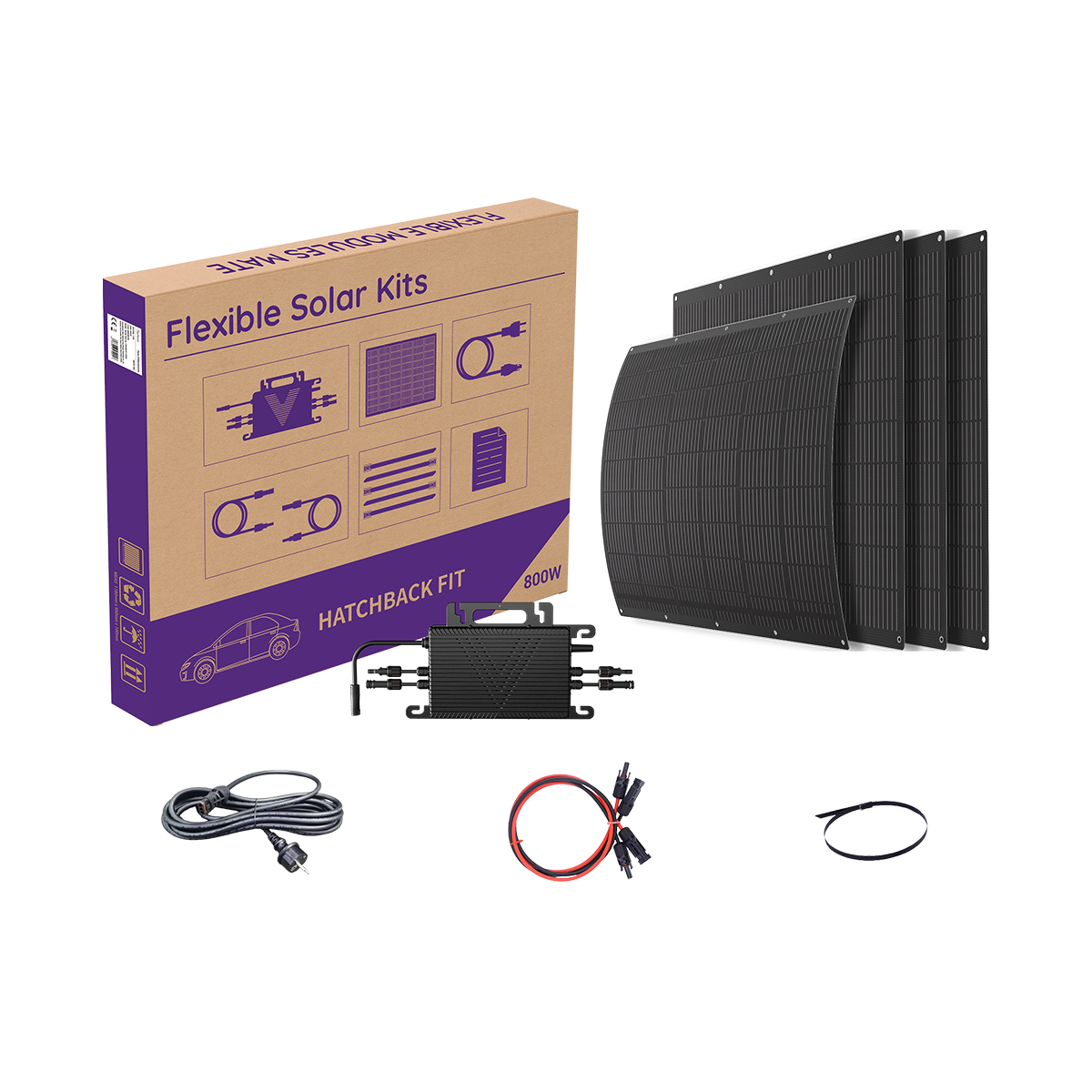

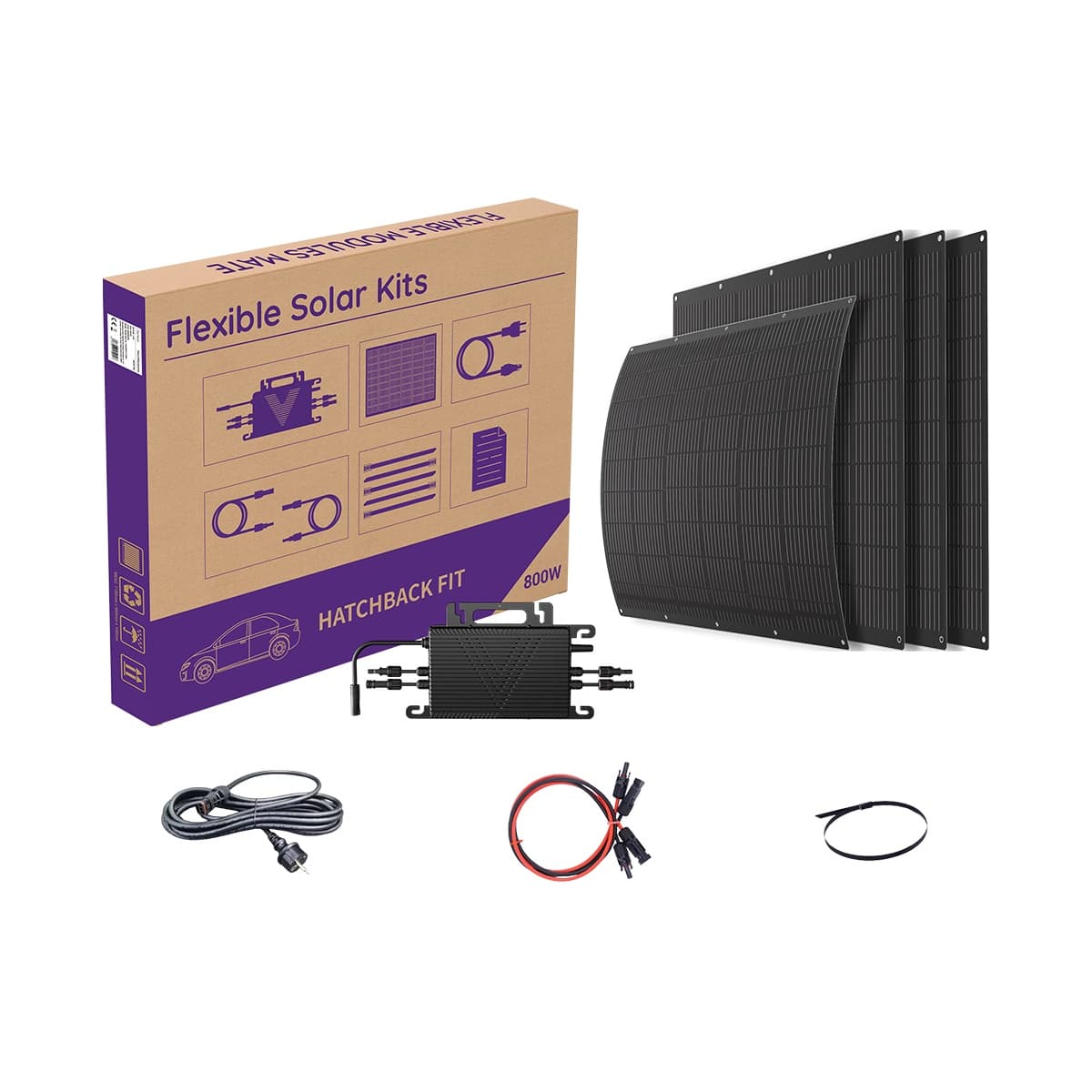

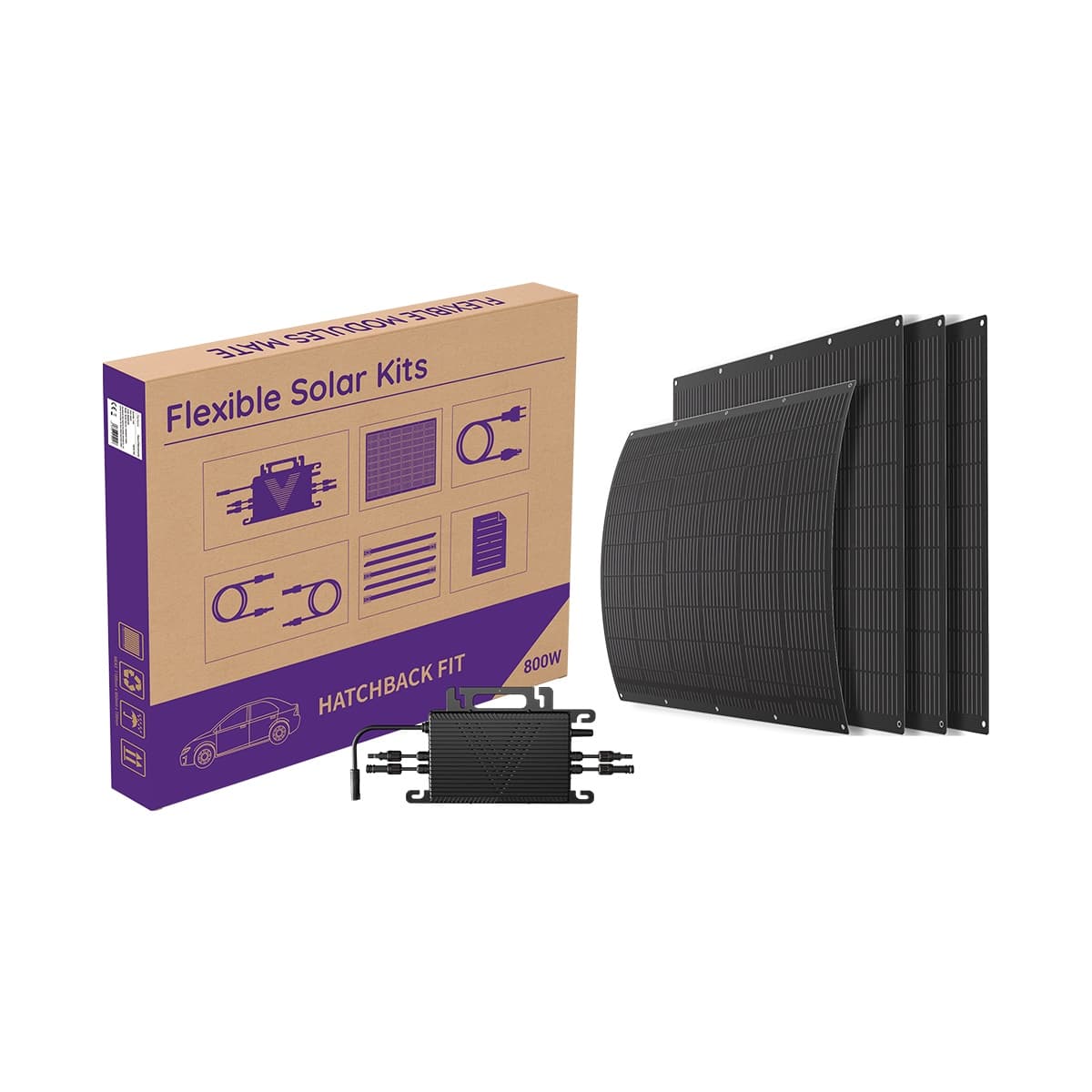

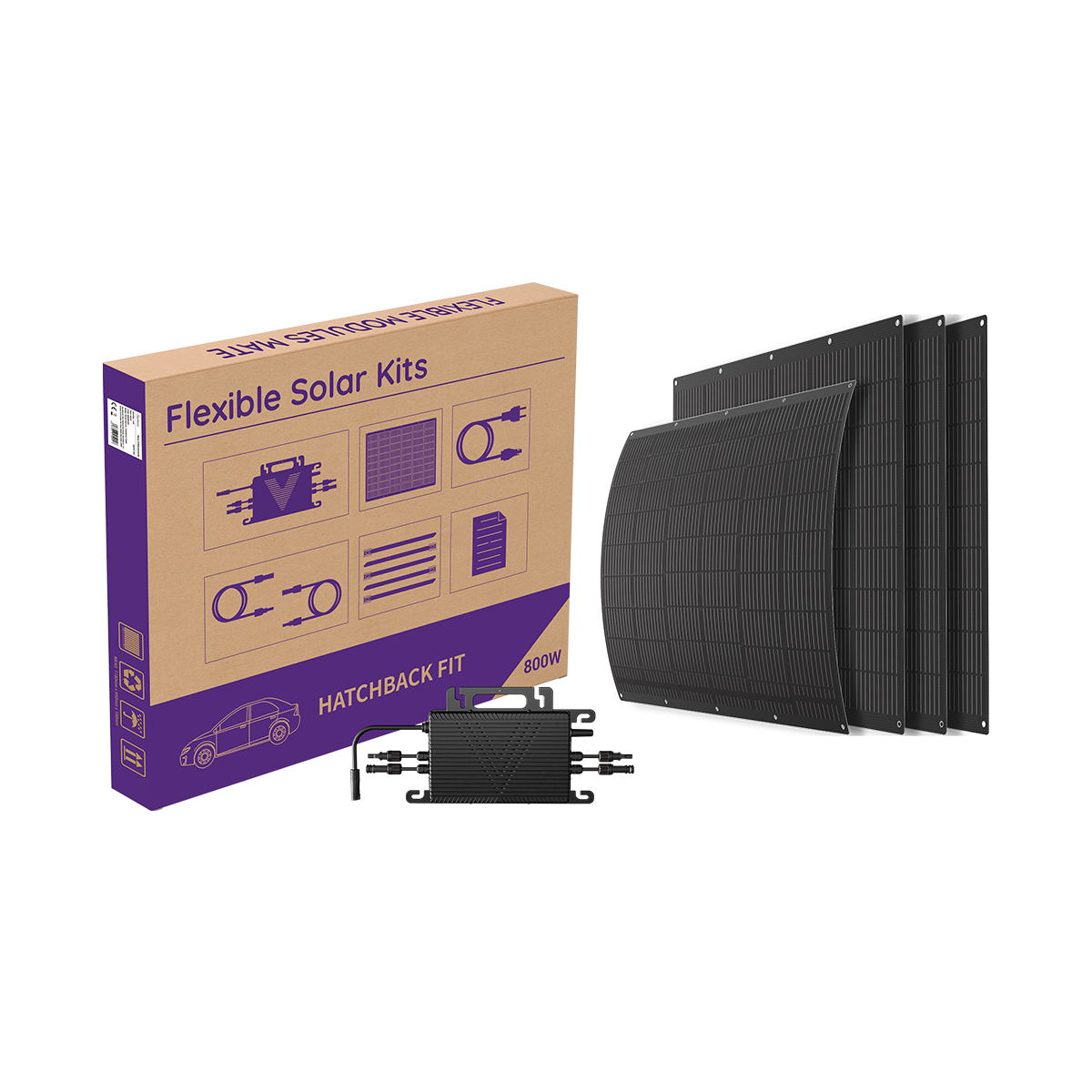

VFSK Series 800W_Datasheet_VaySunic_Global_V1.0

Steps on how to install the VFSK-800W flexible kit

Steps on how to install the VFSK-400W flexible kit
